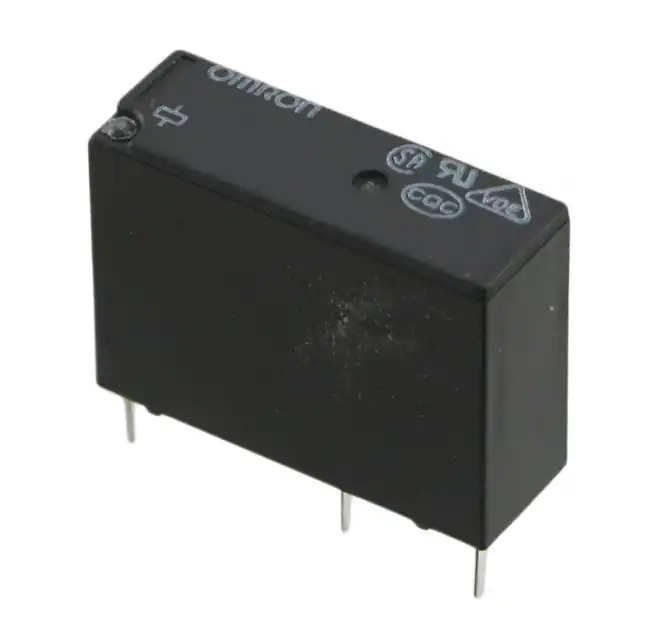

G5NB-1A DC18 Omron
Same model may have multiple batches, images only for reference.

G5NB-1A DC18

Part No G5NB-1A DC18
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 3A 18V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5NB
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 18VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 11.1 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation -
Must Operate Voltage 13.5 VDC
Must Release Voltage 1.8 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material -
Relay Type General Purpose
Coil Resistance 1.62 kOhms
Base Product Number G5NB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1378477-G5NB-1A DC18
Ultra Librarian 3D Model Ultra Librarian G5NB-1A DC18 CAD Model

Description

The G5NB-1A DC18 is a power relay manufactured by Omron Electronics Inc-EMC Div.

  • Series: G5NB
  • Type: General-purpose relay
  • Coil Voltage: 18VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 3A
  • Switching Voltage: 250VAC and 30VDC maximum
  • Coil Current: 11.1mA
  • Coil Type: Non-latching
  • Protection: Sealed with flux protection
  • Must Operate Voltage: 13.5VDC
  • Must Release Voltage: 1.8VDC
  • Operate Time: 10ms
  • Release Time: 10ms
  • Mounting Type: Through-hole
  • Package: Tray
  • Product Status: Active
