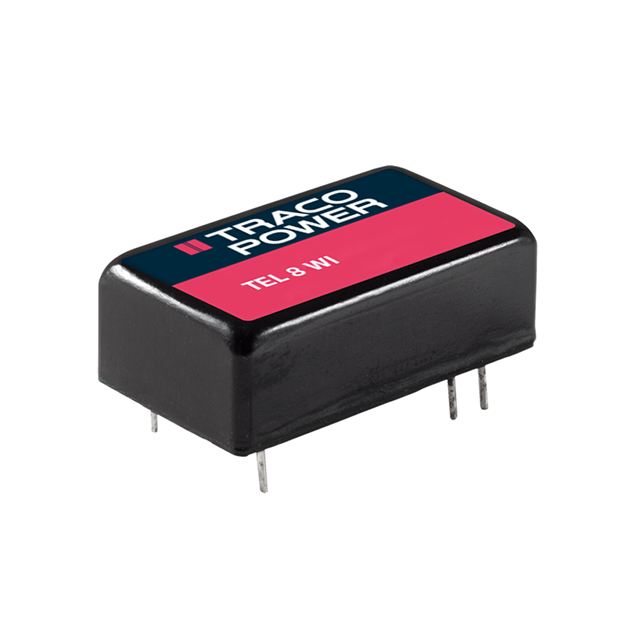

TEL 8-4810WI Real Image
Same model may have multiple batches, images only for reference.

TEL 8-4810WI

Part No TEL 8-4810WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 5.3W / Isolated Module DC DC Converter 1 Output 3.3V 1.6A 18V - 75V Input
Datasheet
TEL 8-4810WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 1.6A
Power (Watts) 5.3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 78%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
Base Product Number TEL 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEL 8-4810WI-ND,TEL8-4810WI
Standard Package 10
Win Source Part Number 1335604-TEL 8-4810WI
Ultra Librarian 3D Model Ultra Librarian TEL 8-4810WI CAD Model

Description

The TEL 8-4810WI is an isolated module DC-DC converter manufactured by Traco Power.

  • Power Output: 5.3 W
  • Voltage Isolation: 1.5 kV
  • Maximum Output Current: 1.6 A
  • Efficiency: 78%
  • Input Voltage: 18 V to 75 V
  • Output Voltage: 3.3 V
  • Applications: ITE (Commercial)
  • Package: 16-DIP module, 6 leads
  • Compliance: ROHS3 regulations
  • Popularity: Medium
