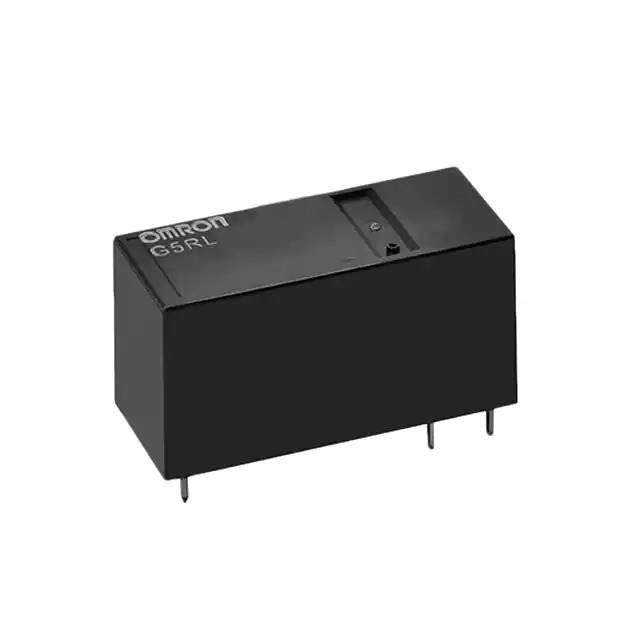

G5RLU-1A-E DC5 Omron
Same model may have multiple batches, images only for reference.

G5RLU-1A-E DC5

Part No G5RLU-1A-E DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5RL-U
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 250VAC, 24VDC - Max
Coil Current 120 mA
Coil Type Latching, Single Coil
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation -
Must Operate Voltage 3.5 VDC
Must Release Voltage -
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material -
Relay Type General Purpose
Coil Resistance 41.7 Ohms
Base Product Number G5RL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373413-G5RLU-1A-E DC5
Ultra Librarian 3D Model Ultra Librarian G5RLU-1A-E DC5 CAD Model

Description

The G5RLU-1A-E DC5 is a power relay from Omron Electronics Inc-EMC Div.

  • Series: G5RL-U
  • Mounting Type: Through-Hole
  • Coil Voltage: 5VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 16A
  • Switching Voltage: 250VAC, 24VDC Maximum
  • Protection: Sealed, Flux
  • Coil Type: Latching, Single Coil
  • Coil Current: 120mA
  • Must Operate Voltage: 3.5VDC
  • Operate Time: 15ms
  • Release Time: 15ms
  • Coil Resistance: 41.7 Ohms
  • Application: General Purpose
