Same model may have multiple batches, images only for reference.

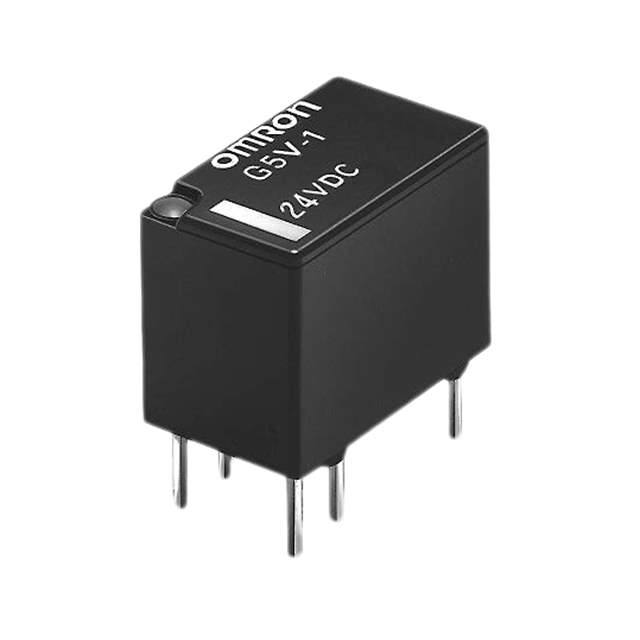

G5V-1-T90 DC5 Real Image
Same model may have multiple batches, images only for reference.

G5V-1-T90 DC5

Part No G5V-1-T90 DC5
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 1A 5VDC / General Purpose Relay SPDT (1 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Signal Relays, Up to 2 Amps
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tube
Mounting Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1 A
Switching Voltage 125VAC, 60VDC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 5 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 90°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 167 Ohms
Base Product Number G5V
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Part Number G5V-1-T90 DC5BYOMZ,G5V1T90DC5BYOMZ,Z6370
Standard Package 25
Win Source Part Number 1323833-G5V-1-T90 DC5
Ultra Librarian 3D Model Ultra Librarian G5V-1-T90 DC5 CAD Model

Description

The Omron Electronics Inc-EMC Div G5V-1-T90 DC5 is a general-purpose signal relay with an SPDT (1 Form C) contact form.

  • Coil Voltage: 5VDC
  • Coil Resistance: 167 Ohms
  • Contact Rating: 1A
  • Switching Voltage: 125VAC and 60VDC
  • Release Time: 5ms
  • Operate Time: 5ms
  • Seal: Fully Sealed
  • Operating Temperature Range: -40°C to 90°C
  • ROHS: Approved
  • Base Product Number: G5V
