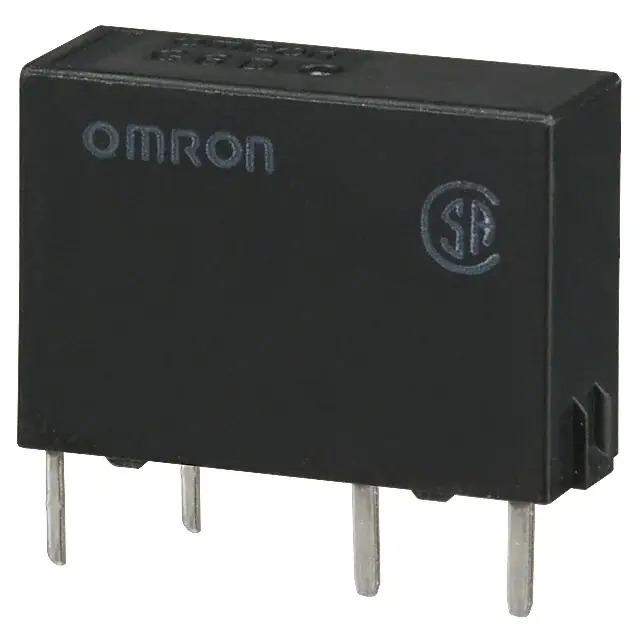

G6D-1A-ASI DC5 Omron
Same model may have multiple batches, images only for reference.

G6D-1A-ASI DC5

Part No G6D-1A-ASI DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPST 5A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6D-ASI
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number G6D
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1373429-G6D-1A-ASI DC5
Ultra Librarian 3D Model Ultra Librarian G6D-1A-ASI DC5 CAD Model

Description

The G6D-1A-ASI DC5 is a power relay designed for high-current applications from Omron.

  • Coil Voltage: 5VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 5A
  • Switching Voltage: 250VAC and 30VDC
  • Design: Sealed, Full Protection
  • Coil Type: Non-Latching
  • Operate Time: 10ms
  • Release Time: 5ms
  • Series: G6D-ASI
