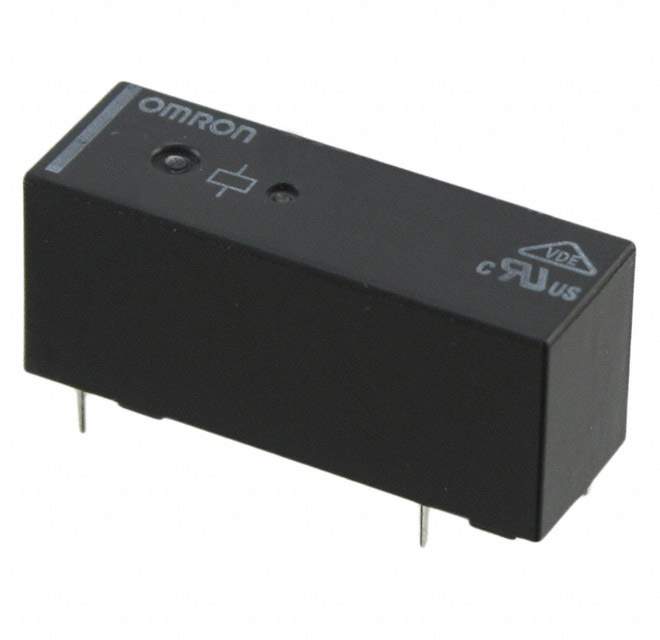

G6RL-1A4-ASI-DC24 Real Image
Same model may have multiple batches, images only for reference.

G6RL-1A4-ASI-DC24

Part No G6RL-1A4-ASI-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6RL
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC - Nom
Coil Current 9.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Indium (AgSnIn)
Relay Type General Purpose
Coil Resistance 2.62 kOhms
Base Product Number G6RL
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1340246-G6RL-1A4-ASI-DC24
Ultra Librarian 3D Model Ultra Librarian G6RL-1A4-ASI-DC24 CAD Model

Description

The Omron 1340246-G6RL-1A4-ASI-DC24 is a general purpose power relay designed for switching high current loads up to 10A @ 250VAC.

  • Contact Form: SPDT (1 Form A)
  • Coil Voltage: 24VDC
  • Contact Rating (Current): 10A
  • Switching Voltage: 250VAC, 30VDC - Max
  • Coil Type: Non Latching
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Sealing: Fully Sealed
  • Operating Temperature: -40°C to 85°C
