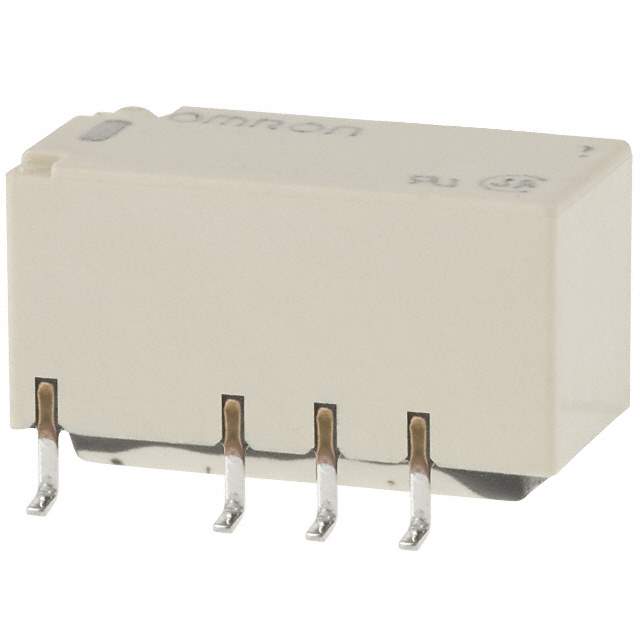

The Omron G6S-2F-Y-TR 24VDC is a miniature signal relay designed for telecommunications and security applications. It features a 24VDC coil and is known for its high sensitivity, compact size, and reliable performance in low-signal switching circuits.

Applications

• Telecommunications Equipment: Used in telephone exchanges, routers, and other telecommunications devices for signal routing and switching.
• Security Systems: Implemented in alarm systems, access control systems, and other security equipment for switching sensor signals and control circuits.
• Measurement and Instrumentation: Found in measuring instruments and data acquisition systems for signal routing and control.
• Medical Equipment: Used in medical devices for switching low-level signals and control circuits.
• Audio and Video Equipment: Employed in audio and video equipment for signal selection and routing.

Features

• Miniature Size: Allows for high-density mounting on printed circuit boards.
• 24VDC Coil: Compatible with standard 24VDC control circuits.
• High Sensitivity: Requires low coil power for efficient operation.
• Low Contact Resistance: Ensures minimal signal loss during switching.
• Surface Mount Design: Suitable for automated assembly processes.

Benefits

• Reliable Signal Switching: Provides consistent and dependable performance in low-signal circuits.
• Compact Design: Enables smaller and more compact product designs.
• Energy Efficient: Low coil power reduces overall system power consumption.
• Easy to Integrate: Simple to incorporate into automated assembly processes.
• Versatile Application: Suitable for a wide range of low-signal switching applications.

Technical Specifications

The G6S-2F-Y-TR 24VDC typically has a contact rating of 0.3A at 125VAC or 1A at 30VDC. The coil resistance, operate time, and release time are specified in the Omron datasheet. This relay is designed for surface mount soldering. Insulation voltage and other safety specifications are also detailed in the datasheet.
