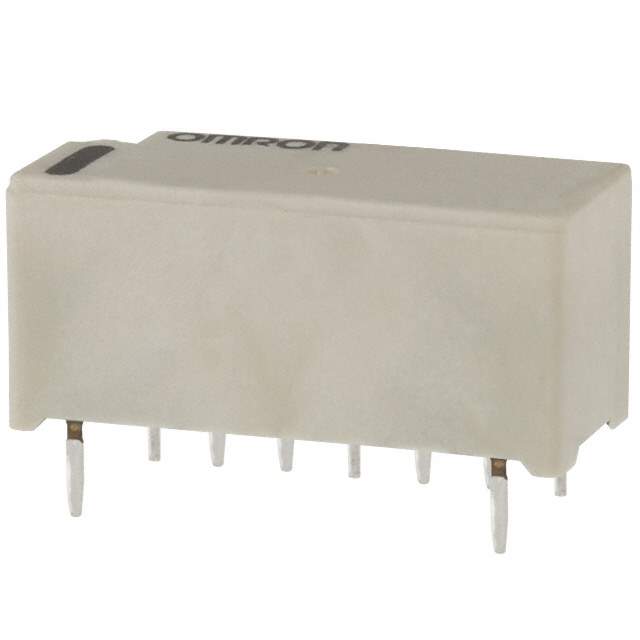

Same model may have multiple batches, images only for reference.

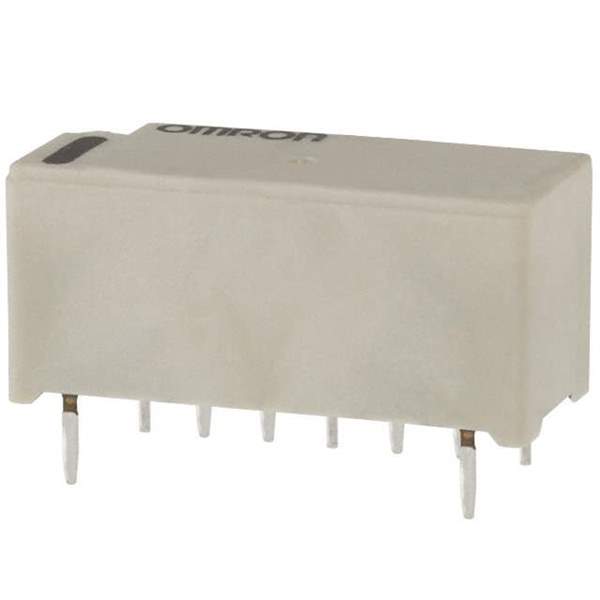

G6Z1PE24DC Real Image
Same model may have multiple batches, images only for reference.

G6Z1PE24DC

Part No G6Z1PE24DC
Manufacturer Omron
Catalog OEM Parts (F - I)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 200
Coil Current 8.3 mA
Coil Resistance 2.88 kΩ
Coil Voltage (DC) 24 V
Contact Current Rating 500 mA
Contact Material Gold
Depth 8.6 mm
Height 8.9 mm
Insertion Loss (dB) 0.2 dB
Length 20 mm
Maximum Operating Temperature 70 °C
Min Operating Temperature -40 °C
Mount PCB
Number of Pins 9
Operate Time 10 ms
Ratings IP67
RoHS Compliant
Switching Current 500 mA
Termination PC Pin
Throw Configuration SPDT
Voltage Rating (AC) 30 V
Win Source Part Number 1060369-G6Z1PE24DC
Categories OEM Parts(F-I)
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G6Z1PE24DC CAD Model

Description

The Omron G6Z1PE24DC relay is a PC pin termination type with gold contact material.

  • Termination: PC pin
  • Contact Material: gold
  • Length: 20mm
  • Mounting: SMD (SMT)
  • IP Rating: IP67
  • Coil Resistance: 2.88 kΩ
  • Coil Current: 8.3 mA
  • Contact Current Rating: 500 mA
  • Operate Time: 10 ms
  • Pins: 9
  • Category: OEM parts (F-I)
  • RoHS: compliant
  • Supply and Demand Status: shortage
