Same model may have multiple batches, images only for reference.

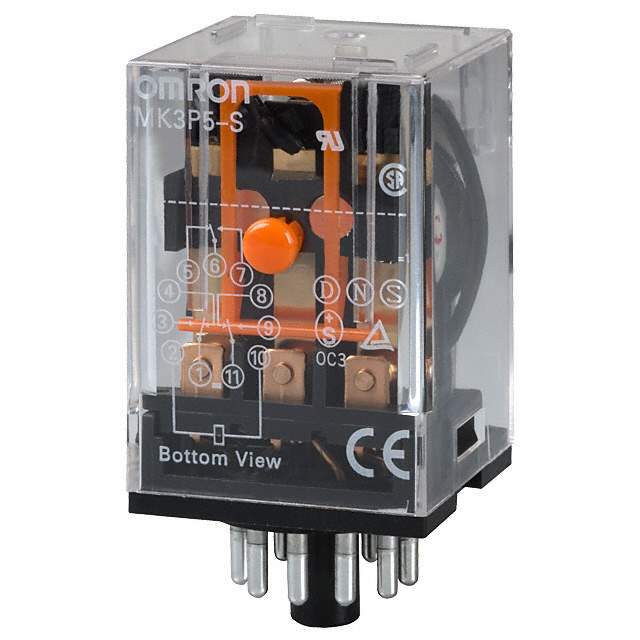

MK3P5-S-AC120 Real Image
Same model may have multiple batches, images only for reference.

MK3P5-S-AC120

Part No MK3P5-S-AC120
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PDT 10A 120V
Datasheet
MK3P5-S-AC120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Automation and Safety
Series MK
Packaging Bulk
Part Status Obsolete(EOL)
Relay Type General
Coil Type Non Latching
Coil Current 18mA
Coil Voltage 120VAC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 250VDC - Max
Turn On Voltage (Maximum) 96 VAC
Turn Off Voltage (Minimum) 36 VAC
Operate Time 20ms
Release Time 20ms
Features Mechanical Indicator, Test Button
Mounting Socketable
Termination Style Plug In, 11 Pin (Octal)
Contact Material Silver (Ag)
Coil Power 2.3 VA
Coil Resistance 1.58 kOhms
Operating Temperature Range -10°C ~ 40°C
Win Source Part Number 788890-MK3P5-S-AC120
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MK3P5-S-AC120 CAD Model

Description

The Omron Automation and Safety MK series relay is an octal plug-in 3PDT (3 Form C) socketable relay with a coil voltage of 120VAC and coil resistance of 1.58 kOhms.

  • Coil Voltage: 120VAC
  • Coil Resistance: 1.58 kOhms
  • Contact Rating (Current): 10A
  • Switching Voltage: 250VAC, 250VDC (max)
  • Operating Temperature: -10°C to 40°C
  • Operate Time: 20ms
  • Features: Mechanical Indicator, Test Button
  • Status: Discontinued, Limited Supply and Demand
