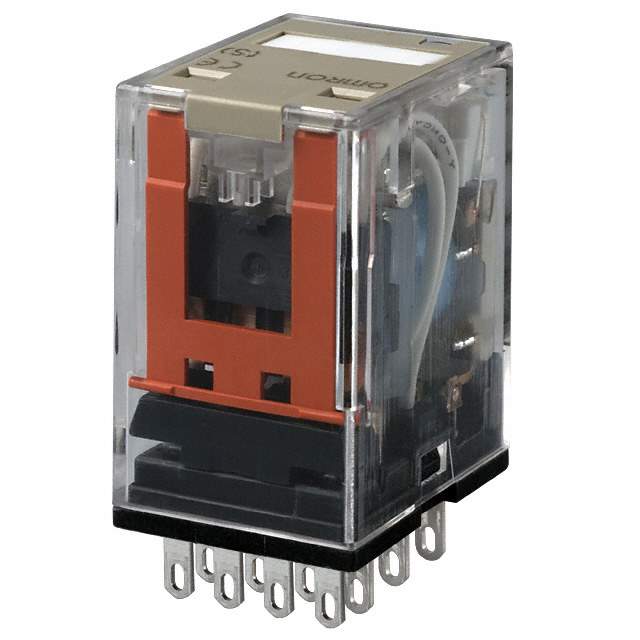

MY4N DC24 (S) Real Image
Same model may have multiple batches, images only for reference.

MY4N DC24 (S)

Part No MY4N DC24 (S)
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 3A 24V  /  General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series MY
Package Bulk
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 37.7 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -55°C ~ 70°C
Contact Material Silver (Ag)
Relay Type General Purpose
Coil Resistance 636 Ohms
Base Product Number MY4
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names Z2188,MY4NDC24S,MY4N-DC24(S)-ND,MY4N-DC24(S),MY4NDC24(S)
Standard Package 10
Win Source Part Number 1209268-MY4N DC24 (S)
Ultra Librarian 3D Model Ultra Librarian MY4N DC24 (S) CAD Model

Description

The MY4N DC24 (S) is a general-purpose power relay. It is manufactured by Omron Automation and Safety.

  • Contact Form: 4PDT (4 Form C)
  • Coil Voltage: 24VDC
  • Contact Rating: 3A
  • Switching Voltage: Up to 250VAC or 125VDC
  • Lighted Indicator: Yes
  • Mounting: Socketable
