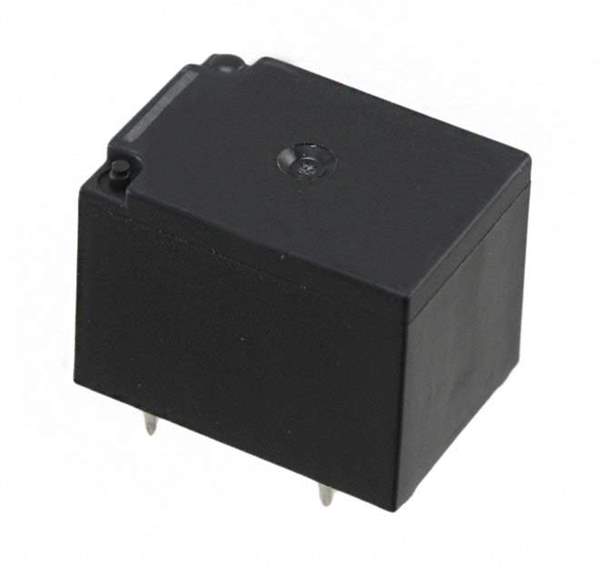

JS1A-5V Real Image
Same model may have multiple batches, images only for reference.

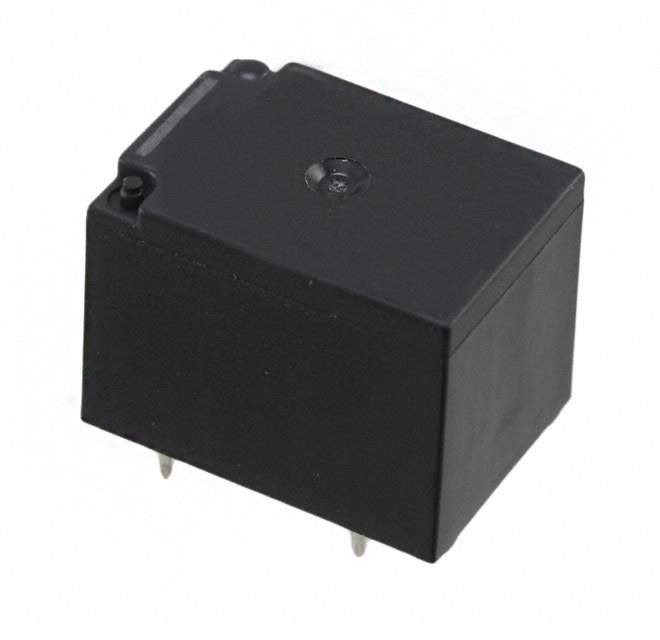

JS1A-5V

Part No JS1A-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 72 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 69.4 Ohms
Base Product Number JS1A
Standard Package 100
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1338883-JS1A-5V
Ultra Librarian 3D Model Ultra Librarian JS1A-5V CAD Model

Description

The Panasonic Electric Works JS1A-5V power relay is a reliable and efficient option for use in electronic devices that require a general-purpose relay.

  • Contact Rating: 10A
  • Switching Voltage: 250VAC, 100VDC
  • Mounting Type: Sealed, Fully-Mounting Type
  • Termination Style: Through-Hole
  • Coil Voltage: 5VDC
  • Coil Resistance: 69.4 ohms
  • Standard Package: 100 units
