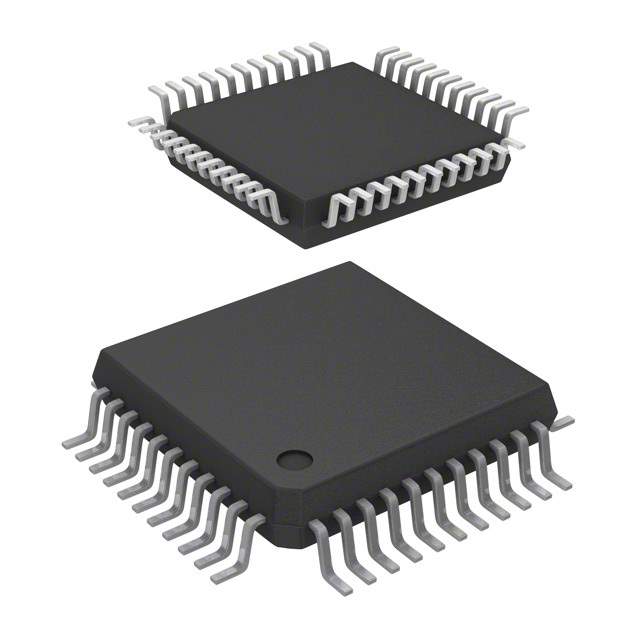

STMicroelectronics ST72F561J9TAE Microcontroller

The ST72F561J9TAE is a robust 8-bit microcontroller from STMicroelectronics, designed to offer an optimal combination of performance, versatility, and cost-effectiveness for a wide array of applications. This microcontroller is an integral component for developers seeking a reliable and efficient solution for their embedded systems.

Key Features:

• CPU: The ST72F561J9TAE boasts a high-performance 8-bit CPU, providing the computational power necessary for handling complex tasks and algorithms with ease.
• Memory: It comes equipped with 60K bytes of program memory (Flash) and 3.8K bytes of data EEPROM, ensuring ample space for application code and data storage.
• Clock: A flexible clock control system includes an oscillator for up to 16 MHz crystal and an internal, user-trimmable 8 MHz RC oscillator, allowing for precise timing and reduced component count.
• I/O Ports: The device features 70 I/O pins, providing extensive interfacing capabilities with external devices and peripherals.
• Timers: Multiple timers, including a main timer and watchdog timer, help in managing time-critical operations and system reliability.
• Communication Interfaces: Integrated communication interfaces such as SPI, SCI (UART), and I2C ensure easy connectivity with other microcontrollers and peripheral devices.
• ADC: An onboard 10-bit Analog-to-Digital Converter (ADC) with up to 16 channels allows for precise conversion of analog signals to digital data.
• PWM Channels: Enhanced PWM outputs enable accurate control for motor drives and other applications requiring pulse width modulation.
• Supply Voltage: The microcontroller operates within a supply voltage range of 4.5V to 5.5V, making it suitable for a variety of power environments.
• Temperature Range: It is designed to operate within an industrial temperature range from -40°C to +85°C, ensuring reliability in harsh conditions.

Applications:

The ST72F561J9TAE is ideal for application in fields such as automotive control systems, industrial automation, consumer electronics, and home appliances. Its robust feature set caters to the needs of complex and demanding applications, where reliability and efficiency are paramount.

With its combination of performance, memory capacity, and rich peripheral set, the ST72F561J9TAE from STMicroelectronics represents a versatile and powerful solution for embedded system designers looking to push the boundaries of what's possible with an 8-bit microcontroller.
