Same model may have multiple batches, images only for reference.

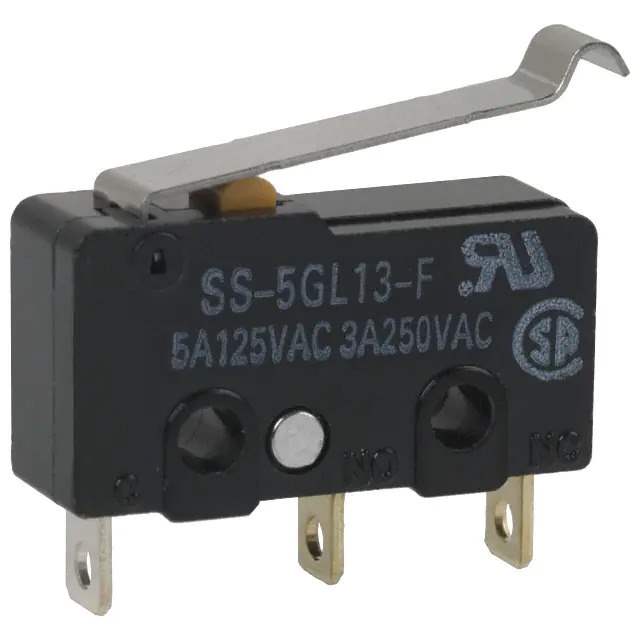

SS-5GL13-F Real Image
Same model may have multiple batches, images only for reference.

SS-5GL13-F

Part No SS-5GL13-F
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
SS-5GL13-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series SS
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 16gf
Release Force 2.039gf
Operating Position 0.420" (10.7mm)
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 844264-SS-5GL13-F
Ultra Librarian 3D Model Ultra Librarian SS-5GL13-F CAD Model

Description

The Omron 844264-SS-5GL13-F is a limit switch from the SS series.

  • Manufacturer: Omron
  • Part Number: 844264-SS-5GL13-F
  • Series: SS
  • Type: Limit Switch
  • Termination Style: Solder Lug
  • Package: Bulk
  • Ingress Protection: IP40
  • Voltage Rating: 125V (AC)
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever with a Simulated Roller
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Operating Force: 16gf
  • Operating Temperature: -25°C to 85°C
