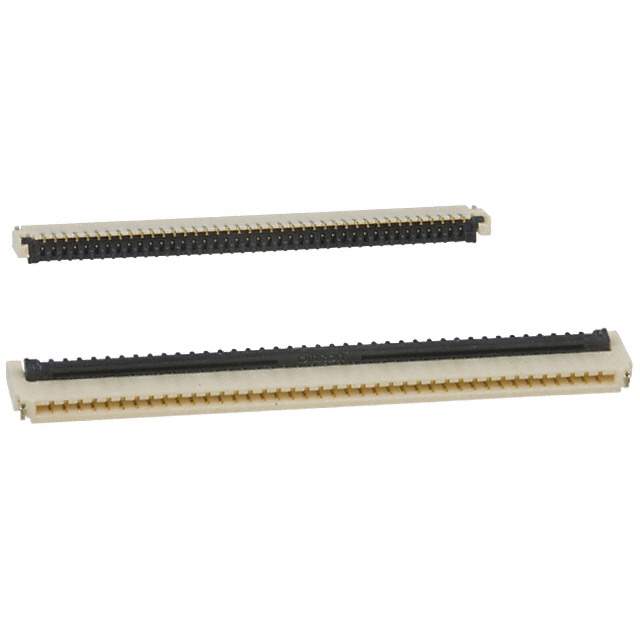

Same model may have multiple batches, images only for reference.

XF2U-1115-3A

Name: XF2U-1115-3A
Brand: Omron
SKU: 536666
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	XF2U-1115-3A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 11POS 0.50MM R/A
Datasheet	XF2U-1115-3A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Omron Electronics Inc-EMC Div
Packaging	Reel - TR
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	11
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C to 85°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Contact Finish Thickness	5.9μin (0.15μm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Win Source Part Number	1119402-XF2U-1115-3A
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian XF2U-1115-3A CAD Model

Alternative Products

Description

The Omron XF2U-1115-3A is a 0.50mm pitch, 11 position, surface mount connector designed for use with flat flex cables.

Contact Plating: Gold
Voltage Rating: 50V
Current Rating: 0.5A
Operating Temperature: -30°C to 85°C
Package: Reel-TR
Features: Rotary lock and backlock
Material: Liquid crystal polymer (LCP)
Halogen-Free: Yes
Popularity: Medium
Supply and Demand Status: Sufficient
