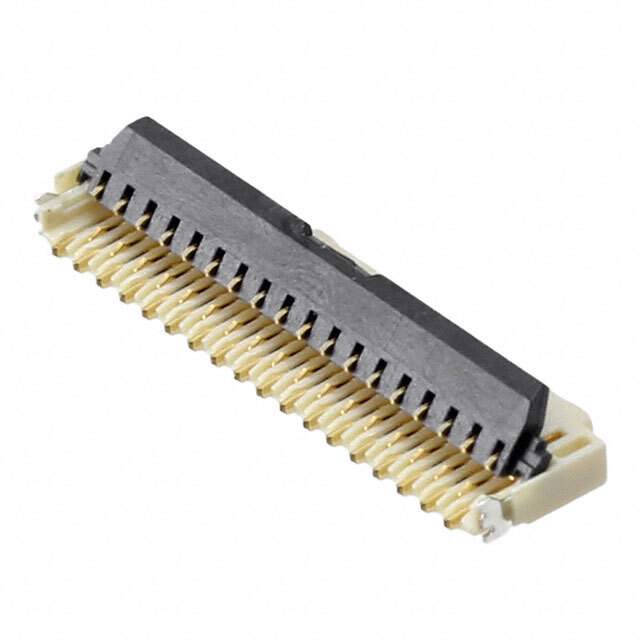

XF3H-3555-31AR Real Image
Same model may have multiple batches, images only for reference.

XF3H-3555-31AR

Part No XF3H-3555-31AR
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 35POS 0.30MM R/A
Datasheet
XF3H-3555-31AR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Omron Electronics Inc-EMC Div
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 35
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.037" (0.95mm)
Locking Feature Rotary Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating 50V
Temperature Range - Operating -30°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Contact Finish Thickness 5.9μin (0.15μm)
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Win Source Part Number 111748-XF3H-3555-31AR
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian XF3H-3555-31AR CAD Model

Description

The Omron Electronics Inc-EMC Div XF3H-3555-31AR is a high-performance FPC connector.

  • Supply and Demand Status: Balanced
  • Description: FPC connector designed for reliable connection between a flat flex cable and a printed circuit board
  • Locking Feature: Rotary lock for secure mating
  • Mating Cycle: High mating cycle of 20
  • Application: Suitable for various electronic applications
