Product Overview: 2N3962 PNP Transistor by ON Semiconductor

The 2N3962 is a high-performance PNP transistor designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This transistor is a part of ON Semiconductor's comprehensive portfolio of discrete devices, catering to a wide array of electronic applications. The 2N3962 is well-suited for amplification and switching applications that require a robust and reliable component.

Key Features

• Type: PNP Bipolar Junction Transistor (BJT)

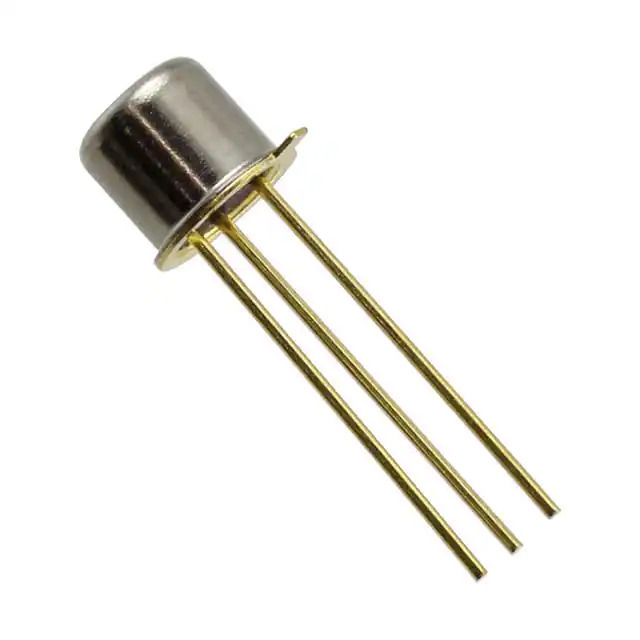

• Package: TO-18 metal can for excellent thermal performance
• Collector-Emitter Voltage (Vceo): Capable of withstanding up to 40V, making it suitable for moderate voltage applications
• Collector Current (Ic): Continuous collector current up to 200mA, allowing for a wide range of operational uses
• Power Dissipation (Pd): Capable of dissipating up to 360mW, ensuring stable performance under various conditions
• DC Current Gain (hFE): High hFE value, providing efficient current amplification
• Transition Frequency (fT): High-frequency operation is possible with a transition frequency typically in the MHz range

Applications

The 2N3962 PNP transistor is versatile and can be used in a variety of electronic circuits. It is particularly useful in linear amplifiers, signal processing, and power management solutions. The device can also be found in consumer electronics, automotive systems, and industrial controls where reliable switching and amplification are required.

Quality and Reliability

ON Semiconductor ensures that the 2N3962 meets strict quality standards, providing consistent and reliable performance for both commercial and industrial applications. The device's robust construction in the TO-18 package ensures that it can withstand challenging environmental conditions while maintaining operational integrity.

Environmental Considerations

ON Semiconductor is committed to sustainability and environmental responsibility. The 2N3962 is designed with eco-friendly materials and complies with RoHS directives, minimizing the ecological footprint of your electronic designs.

Whether you are designing an audio amplifier or developing power management systems, the 2N3962 from ON Semiconductor offers the reliability and performance you need to ensure your products operate effectively.
