The 2N6042 is a versatile and robust bipolar junction transistor (BJT) designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This power transistor is specifically engineered to handle high-power amplification and switching applications, making it an ideal component for a wide range of electronic circuits.

Key Features:

• Type: NPN
• Collector-Emitter Voltage (VCEO): 60V
• Collector Current (IC): 8A
• Total Power Dissipation (Ptot): 75W
• DC Current Gain (hFE): 20 to 70 at IC = 4A
• Operating Junction Temperature Range: -65°C to +150°C
• Package: TO-220

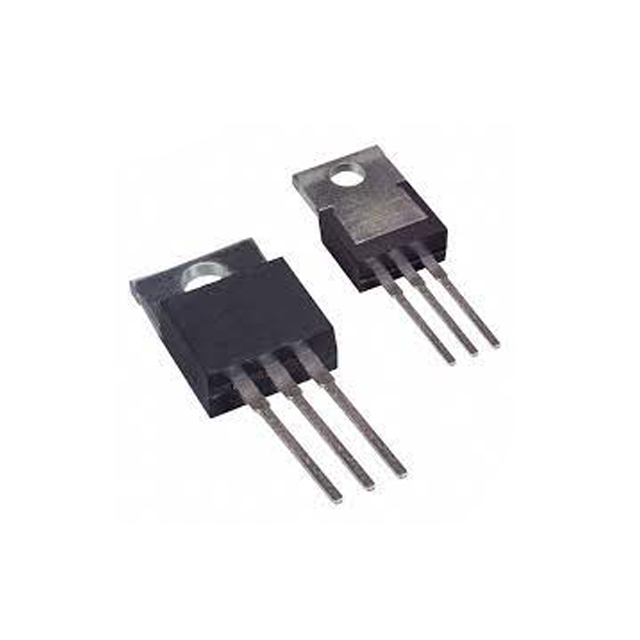

The 2N6042 is housed in a TO-220 package, which is known for its excellent thermal performance and durability. The transistor's high current capability, combined with a collector-emitter voltage of 60V, allows it to manage significant power levels without compromising performance or reliability.

With a total power dissipation of 75W, the 2N6042 is capable of handling challenging environments and demanding applications. Its DC current gain (hFE) is characterized for collector currents up to 4A, ensuring a consistent and reliable operation in the linear region of its performance curve.

This transistor is widely used in power switching circuits, such as motor controllers, power supplies, and other energy management systems. Its ability to operate at a wide range of temperatures from -65°C to +150°C makes it suitable for industrial and automotive applications where extreme conditions are common.

ON Semiconductor's commitment to quality ensures that the 2N6042 meets strict standards, providing a reliable solution for designers looking to incorporate a high-performance power transistor into their electronic designs.

Whether you are developing a new project or replacing a component in an existing circuit, the 2N6042 from ON Semiconductor is a trustworthy and efficient choice for your power control needs.
