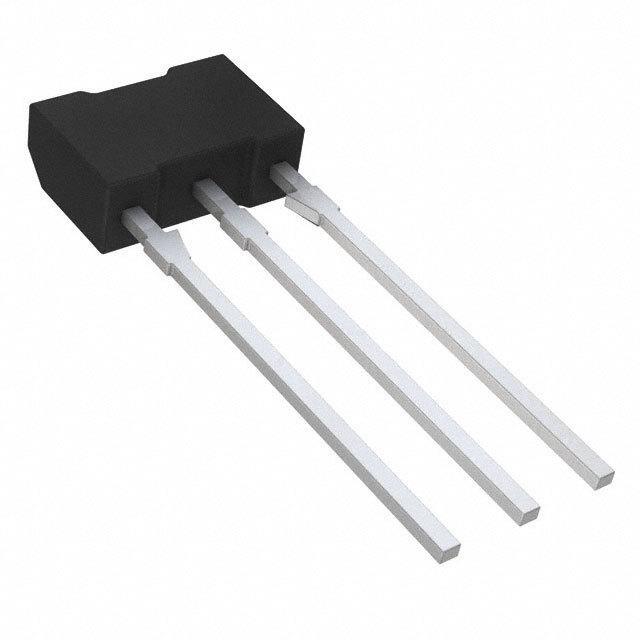

2SA1705S-AN PNP Transistor by ON Semiconductor

The 2SA1705S-AN is a high-quality PNP transistor designed and manufactured by ON Semiconductor, a leading supplier in the semiconductor industry. This transistor is a part of the 2SA series, known for their reliability and performance across a wide range of electronic applications.

The 2SA1705S-AN transistor is characterized by its small signal, high-speed switching capabilities, making it an ideal choice for audio frequency amplifier applications. Its PNP polarity means that it is designed to handle a flow of holes as the charge carriers, making it suitable for use in the negative side of the circuit.

Key features of the 2SA1705S-AN include a collector-base voltage (VCBO) of -50V, a collector-emitter voltage (VCEO) of -50V, and a collector current (IC) of -2A. These specifications ensure that the transistor can handle a moderate level of voltage and current without succumbing to electrical stress, thus offering a stable performance for your electronic designs.

The device also boasts a high gain bandwidth product (fT) of 80MHz, which indicates its ability to operate effectively at high frequencies. This makes the 2SA1705S-AN transistor a versatile component for not only audio amplifiers but also for RF and high-speed switching circuits.

Built with ON Semiconductor's commitment to quality, the 2SA1705S-AN is encapsulated in a TO-92 package, which is widely recognized for its ease of installation and ability to withstand tough environmental conditions. This packaging also allows for effective heat dissipation, ensuring the transistor's longevity and consistent performance even under extended periods of operation.

Whether you're designing consumer electronics, industrial systems, or sophisticated audio equipment, the 2SA1705S-AN PNP transistor from ON Semiconductor is a reliable and efficient choice that will help you achieve the desired performance for your electronic circuits.

For detailed specifications, application notes, and additional resources, please refer to the official ON Semiconductor documentation available on their website.
