ON Semiconductor 2SA1763-TL-E PNP Transistor

The 2SA1763-TL-E is a high-quality PNP transistor from ON Semiconductor, designed to offer reliable performance for a wide range of electronic applications. This bipolar junction transistor (BJT) is a versatile component, suitable for use in amplification and switching applications, making it an essential part of many electronic circuits.

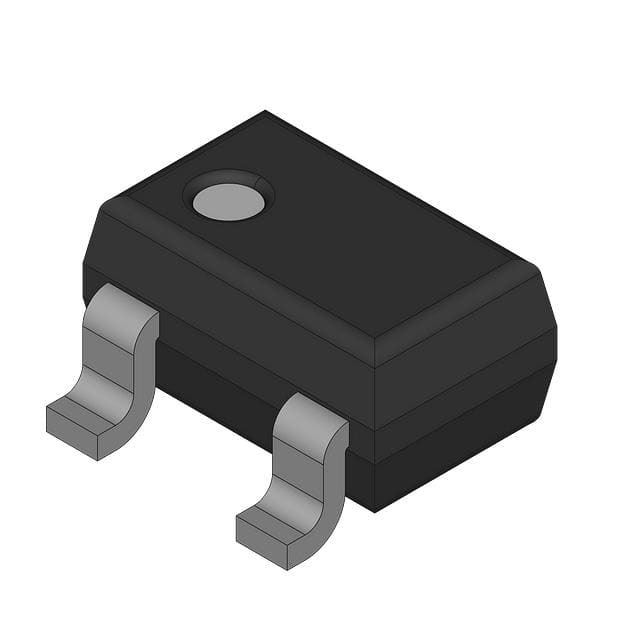

With its compact SOT-428 (SC-75) surface-mount package, the 2SA1763-TL-E is optimized for space-conscious designs, ensuring a minimal footprint on printed circuit boards (PCBs). This makes it an excellent choice for portable and miniaturized electronic devices where space is at a premium.

The transistor features a collector-base voltage (VCBO) of -50V, a collector-emitter voltage (VCEO) of -50V, and a collector current (IC) of -150mA. These specifications indicate that the 2SA1763-TL-E can handle moderate voltage and current levels, making it suitable for a variety of low to medium power applications.

Additionally, the 2SA1763-TL-E boasts a high gain-bandwidth product (fT) of 80MHz, which is indicative of its ability to operate effectively at high frequencies. This characteristic is particularly beneficial in applications such as RF amplification, where high-speed signal processing is required.

ON Semiconductor's commitment to quality is reflected in the 2SA1763-TL-E's robust construction, which ensures reliability and longevity. This transistor is also characterized by its low saturation voltage, which enhances its efficiency by reducing power dissipation during operation. The low on-state voltage drop contributes to energy savings, particularly in battery-powered devices.

The 2SA1763-TL-E is also RoHS compliant, adhering to environmental standards that restrict the use of hazardous substances in electronic components. This compliance ensures that the product is suitable for use in markets that demand environmentally-friendly components.

In summary, the ON Semiconductor 2SA1763-TL-E PNP transistor is an efficient, reliable, and versatile component that meets the demands of modern electronic designs. Whether it's for amplification, switching, or any other application requiring a PNP transistor, the 2SA1763-TL-E is an excellent choice for designers and engineers looking for performance and quality.
