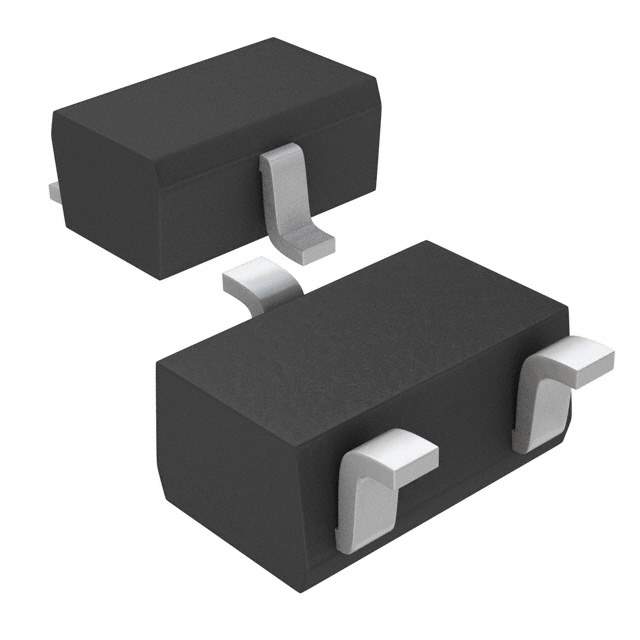

The UMT3906 is a general-purpose NPN bipolar junction transistor (BJT) manufactured by Rohm Semiconductor. This transistor is commonly used in a wide range of electronic applications for switching and amplification due to its reliable performance and versatile characteristics. It is typically housed in a small SOT-323 package, making it suitable for space-constrained designs.

Applications:

• Low-side switching: Controls the flow of current to a load by switching the ground connection.
• Signal amplification: Amplifies small signals in audio and RF circuits.
• Driver circuits: Drives larger loads such as LEDs, relays, and small motors.
• Level shifting: Converts voltage levels between different logic families.
• Oscillator circuits: Used in various oscillator designs to generate periodic signals.

Features:

• NPN transistor: Allows current to flow from collector to emitter when the base is biased.
• High current gain (hFE): Provides significant amplification of the base current.
• Low saturation voltage: Minimizes voltage drop across the transistor when fully on.
• Small SOT-323 package: Enables compact and space-saving designs.
• Pb-free and RoHS compliant: Complies with environmental regulations.

Benefits:

• Versatile application: Suitable for a wide range of switching and amplification tasks.
• Efficient switching: Provides fast and reliable switching performance.
• Space-saving design: Small package allows for high-density circuit layouts.
• Cost-effective solution: Offers a good balance of performance and price.
• Environmentally friendly: Complies with environmental regulations.

The UMT3906 is characterized by its current gain (hFE), collector-emitter voltage (VCEO), and collector current (IC). It's crucial to consult the datasheet for specific electrical characteristics and operating conditions. When using the UMT3906, ensure that the maximum ratings for voltage, current, and power dissipation are not exceeded to prevent damage to the transistor.

Technical Specifications (Typical):

• Collector-Emitter Voltage (VCEO): 40V
• Collector Current (IC): 200mA
• Power Dissipation (PD): 200mW
• Current Gain (hFE): 100-300
• Operating Temperature: -55°C to +150°C
