BMS3003-1E

Part No BMS3003-1E
Manufacturer ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF

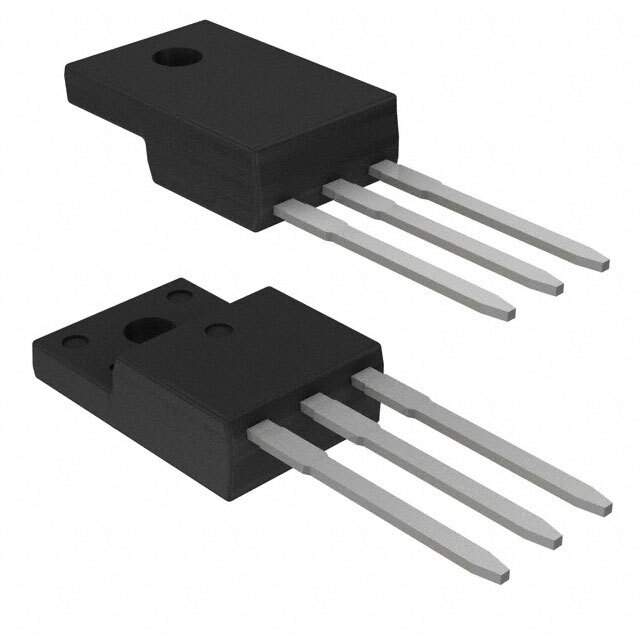

Description MOSFET P-CH 60V 78A / Trans MOSFET P-CH Si 60V 78A 3-Pin(3+Tab) TO-220FP Tube
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube
Channel Type Type P
Technology MOSFET
Drain Source Voltage 60V
Current - Continuous Drain (Id) @ 25°C 78A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4V, 10V
Gate Charge (Qg) (Maximum) @ Vgs 285nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 13200pF @ 20V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2W (Ta), 40W (Tc)
Rds On (Maximum) @ Id, Vgs 6.5 mOhm @ 39A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-220F-3SG
Package TO-220-3 Full Pack
Win Source Part Number 770257-BMS3003-1E
Popularity Medium
Supply and Demand Status Limited
Family Name BMS3003
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian BMS3003-1E CAD Model

Description

ON Semiconductor BMS3003-1E Product Overview

The BMS3003-1E is a high-performance, integrated circuit brought to you by ON Semiconductor, a leader in energy-efficient innovations. This product is designed to meet the rigorous demands of various applications, particularly in the battery management systems sector. It is an integral part of ensuring the longevity and reliability of battery-powered devices.

Key Features

  • Precision Monitoring: The BMS3003-1E offers precise monitoring capabilities for critical parameters such as voltage, current, and temperature, ensuring optimal battery performance and safety.
  • High Integration: This device integrates multiple functions into a single chip, reducing the need for external components and simplifying the design of battery management systems.
  • Energy Efficiency: With ON Semiconductor's focus on energy efficiency, the BMS3003-1E is designed to minimize power consumption, contributing to the extended battery life of the end application.
  • Robust Protection: It includes a range of protection features, such as overvoltage, undervoltage, and overtemperature protection, safeguarding the battery from potential damage due to abnormal conditions.
  • Communication Interface: The device supports various communication protocols, allowing for easy integration with microcontrollers and other components in a battery management system.

Applications

ON Semiconductor's BMS3003-1E is versatile and can be utilized in a wide array of applications. It is particularly well-suited for:

  • Electric and hybrid electric vehicles (EV/HEV)
  • Energy storage systems (ESS)
  • Portable power tools
  • Uninterruptible power supplies (UPS)
  • Other applications requiring reliable battery management

Quality and Reliability

As with all ON Semiconductor products, the BMS3003-1E is manufactured to the highest quality standards, ensuring reliability and performance in the field. It is designed to meet the stringent requirements of the automotive industry, among others, and is backed by ON Semiconductor's commitment to customer satisfaction.
