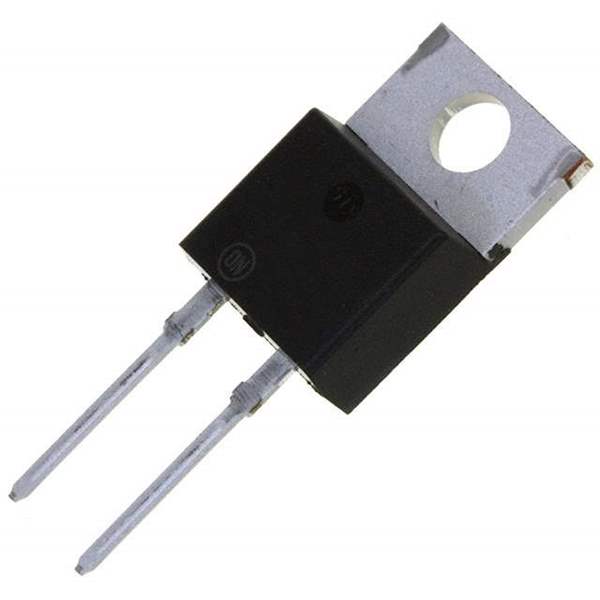

The BYW29-200G, designed and manufactured by ON Semiconductor, is a state-of-the-art ultra-fast rectifier that is optimized for high-efficiency power conversion applications. This robust component is engineered to handle a repetitive reverse voltage of 200V and is commonly employed in switch-mode power supplies, freewheeling diodes, and polarity protection devices.

Key Features

• High Reverse Voltage Capability: With a repetitive reverse voltage of 200V, the BYW29-200G is suitable for high-voltage applications.
• Ultra-Fast Reverse Recovery Time: The device boasts an impressive reverse recovery time, significantly reducing switching losses and improving overall efficiency.
• Low Forward Voltage Drop: This feature ensures minimal power loss during conduction, leading to energy savings and reduced heat generation.
• High Surge Current Capability: The BYW29-200G can handle high surge currents, making it reliable in applications where inrush currents are prevalent.
• Robust Design: The device is encapsulated in a highly reliable package, which ensures long-term stability and performance under various conditions.

Applications

The BYW29-200G is versatile and can be used in a range of applications, including:

• Power management in consumer electronics
• Industrial power supplies
• Automotive systems
• Telecommunication equipment
• Lighting systems

Technical Specifications

Parameter Value Repetitive Reverse Voltage (V<sub>RRM) 200V Average Rectified Current (I<sub>AV) 8A Reverse Recovery Time (t<sub>rr) Ultra-Fast Operating Junction Temperature (T<sub>j) -65°C to +175°C

With its exceptional performance and reliability, the BYW29-200G from ON Semiconductor is an excellent choice for designers looking to enhance the efficiency and durability of their power conversion systems.
