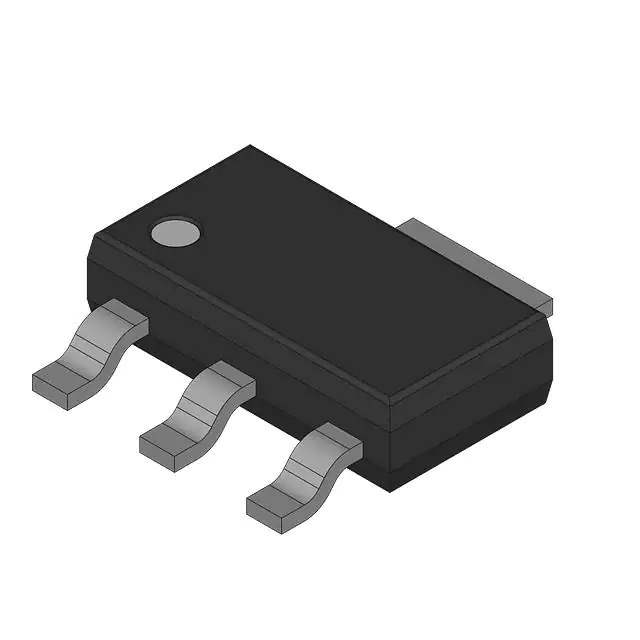

The CS52015-3GST3 is a high-performance, fixed-frequency current mode controller from ON Semiconductor, designed for a wide range of power conversion applications. This integrated circuit (IC) is tailored for off-line and DC-to-DC converter applications, offering an optimal solution for those in need of a reliable and efficient power management system.

Key Features

• Current Mode Operation: Provides improved transient response and simplified loop compensation over voltage mode control.
• High Switching Frequency: Operates at 52 kHz, reducing the size of magnetics and filter components, leading to a more compact overall design.
• Low Start-Up Current: This device features a typical start-up current of just 0.2 mA, which enhances system efficiency, particularly in standby modes.
• Automatic Feed Forward Compensation: Helps to maintain stable operation over a wide range of input voltages and output loads.
• Trimmed Oscillator Discharge Current: Ensures precise duty cycle clamping, which is crucial for controlling peak switch currents in power supply designs.

Applications

The CS52015-3GST3 is versatile and can be employed in various applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Off-Line Power Converters
• AC-DC Adapters for Laptops and PCs
• Telecommunication Equipment Power Supplies

Technical Specifications

The CS52015-3GST3 is equipped with numerous technical specifications that make it a robust choice for power management solutions:

• Voltage Range: Capable of handling a wide input voltage range, making it suitable for various applications.
• Thermal Shutdown: Features built-in thermal shutdown protection to prevent damage from overheating.
• Under-Voltage Lockout (UVLO): Ensures that the device operates at the correct voltage levels, enhancing safety and reliability.
• Output Drive Capability: Capable of driving a high current totem pole output, which is necessary for driving power MOSFETs.

Quality and Reliability

ON Semiconductor is committed to providing high-quality products, and the CS52015-3GST3 is no exception. It is designed with the highest standards of performance and reliability in mind, ensuring that it meets the rigorous demands of industrial and commercial power supply applications.
