The CSPEMI307A from ON Semiconductor is a cutting-edge EMI filter array with integrated ESD protection, designed to suppress unwanted electromagnetic interference (EMI) and provide robust electrostatic discharge (ESD) protection in a single, compact package. This versatile component is an excellent choice for preserving signal integrity and extending the life of sensitive electronics in a variety of applications.

Key Features

• Integrated Solution: Combines six EMI filters and ESD protection circuits, reducing component count and saving valuable board space.
• High-Speed Data Line Protection: Capable of protecting high-speed data lines such as USB 2.0, HDMI, and LVDS from ESD events.
• Low Pass Filter Design: Provides excellent noise attenuation for unwanted high-frequency signals, ensuring clean data transmission.
• Low Clamping Voltage: Offers low dynamic resistance and clamping voltage, minimizing the risk of damage to protected components during an ESD event.

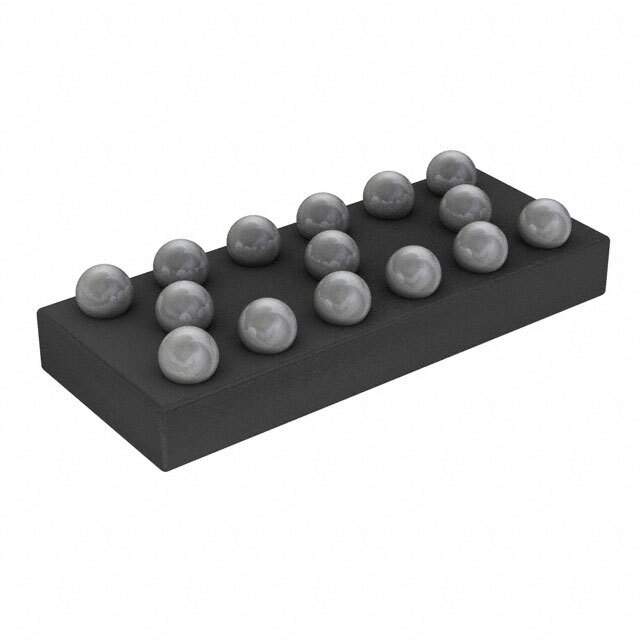

• Compact Footprint: Housed in a space-saving CSP (Chip Scale Package), making it ideal for portable and space-constrained applications.

Applications

The CSPEMI307A is suitable for a wide range of applications that require both EMI filtering and ESD protection. Its use is particularly prevalent in:

• Mobile and Smart Devices
• Computing Platforms
• Consumer Electronics
• Portable Medical Equipment
• Industrial Controls

Technical Specifications

The device's technical specifications include an operating voltage range typically from 0.9V to 3.6V, with ESD protection meeting the IEC61000-4-2 (Level 4) standard. The filter's cut-off frequency and insertion loss characteristics are designed to effectively mitigate EMI without compromising signal quality.

Conclusion

ON Semiconductor's CSPEMI307A is an efficient and reliable solution for designers looking to enhance the performance and longevity of their electronic products. By integrating EMI filters with ESD protection, it simplifies design complexity and offers a high level of protection, making it an indispensable component in modern electronic systems.
