ON Semiconductor FAN53611AUC135X: A Compact and Efficient Voltage Regulator

The FAN53611AUC135X from ON Semiconductor is a high-efficiency, synchronous step-down DC-DC converter designed to meet the power management requirements of modern portable devices. This voltage regulator is capable of delivering a continuous 600mA load current over a wide input voltage range of 2.3V to 5.5V, making it highly versatile for various applications.

One of the key features of the FAN53611AUC135X is its high efficiency, which can reach up to 96%. This is particularly beneficial in battery-powered devices, as it helps to extend battery life by minimizing power losses. The device operates at a fixed switching frequency of 3MHz, which allows for the use of small, low-cost inductors and capacitors, reducing the overall footprint and bill of materials.

The FAN53611AUC135X incorporates several protection features to ensure the safety and reliability of the end application. These include over-current protection, under-voltage lockout, thermal shutdown, and soft-start functionality to minimize inrush current during startup.

Additional benefits of this ON Semiconductor voltage regulator include:

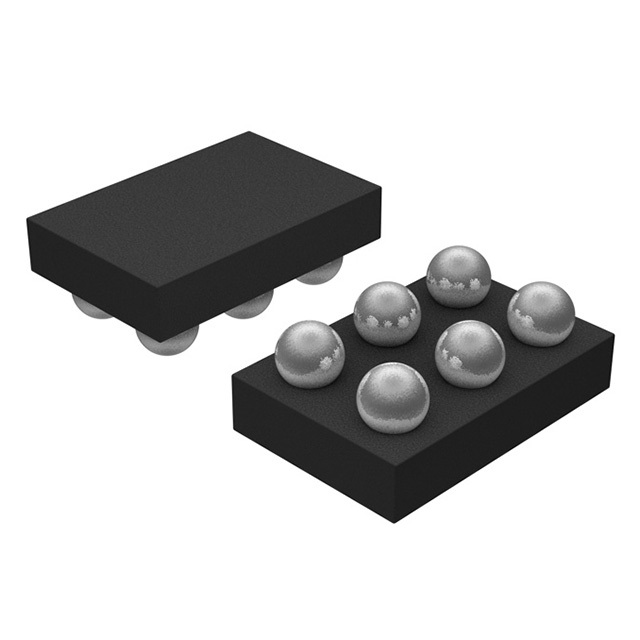

• Small Package: The device is offered in a compact, 6-pin 1.2mm x 1.6mm WLCSP package, ideal for space-constrained applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to VIN, providing design flexibility to power various ICs.
• Power Save Mode: At light loads, the device automatically enters Power Save Mode to maintain high efficiency across the full load range.
• Low Quiescent Current: The low quiescent current of the FAN53611AUC135X contributes to its high efficiency, making it suitable for standby and sleep modes in portable devices.

Overall, the FAN53611AUC135X is an excellent choice for designers looking for a compact, efficient, and reliable voltage regulator for their next portable device project. Its high efficiency, small form factor, and comprehensive protection features make it a strong contender in the power management solutions market.
