ON Semiconductor FDBL86566-F085: A Robust Power Solution

The FDBL86566-F085 from ON Semiconductor is an innovative power MOSFET designed to meet the demanding requirements of modern electronic applications. This device is a part of the PowerTrench® series, which is known for providing excellent power efficiency and reliability. The FDBL86566-F085 is particularly suitable for synchronous rectification in power supplies, motor drives, and other high-performance power conversion applications.

Constructed with ON Semiconductor's state-of-the-art technology, the FDBL86566-F085 boasts a low on-resistance (R<sub>DS(on)) which significantly reduces conduction losses, leading to an overall increase in system efficiency. This feature is especially critical in applications where energy conservation is paramount. The MOSFET's advanced design also ensures fast switching performance, further contributing to the efficiency of the end application.

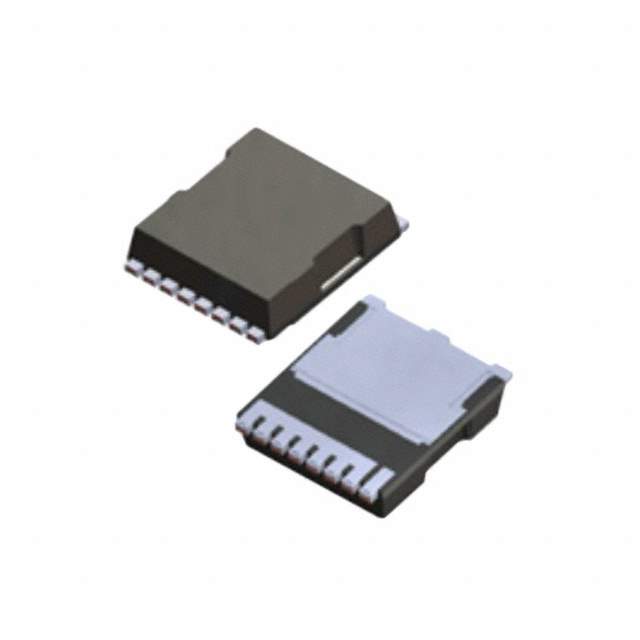

The device is encapsulated in a robust Power56 package, which provides a compact footprint while also offering excellent thermal performance. This packaging ensures that the FDBL86566-F085 can handle high current densities with ease, making it a reliable choice for power-intensive applications. The package is also RoHS compliant, aligning with current environmental regulations and ensuring suitability for use in a wide range of markets.

Key features of the FDBL86566-F085 include:

• 100V, 3.9 mΩ R<sub>DS(on) at V<sub>GS=10V (typical)
• High continuous drain current (I<sub>D) capability
• Low gate charge (Q<sub>g) for efficient switching
• Fast body diode for superior switching performance
• High-performance Power56 package for enhanced thermal management

Applications that can benefit from the FDBL86566-F085 include:

• DC/DC converters for server and telecom power systems
• Motor drives for industrial applications
• Power supplies for consumer electronics
• Battery management systems for electric vehicles
• Renewable energy inverters

The FDBL86566-F085 from ON Semiconductor represents a blend of performance, efficiency, and reliability, making it an excellent choice for designers looking to optimize their power management systems. With its advanced features and robust packaging, this power MOSFET is poised to deliver top-notch performance in a wide array of applications.
