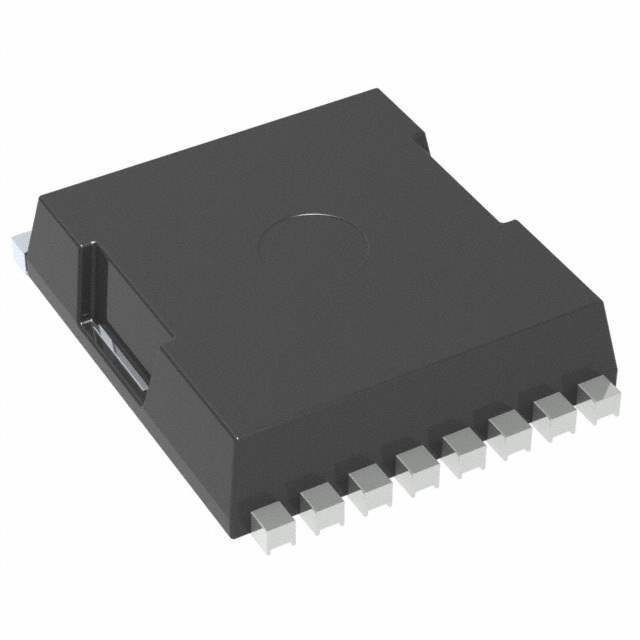

FDBL9403-F085T6

Part No FDBL9403-F085T6
Manufacturer ON Semiconductor
Catalog FETs - Single
Description MOSFET N-CH 40V 50A/300A 8HPSOF
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202233-FDBL9403-F085T6
Manufacturer onsemi
Category Discrete Semiconductor Products -Transistors- FETs, MOSFETs- Single FETs, MOSFETs
Series Automotive, AEC-Q101
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-HPSOF

Description

ON Semiconductor FDBL9403-F085T6 Overview

The FDBL9403-F085T6 is a state-of-the-art N-Channel PowerTrench® MOSFET designed and manufactured by ON Semiconductor, a renowned leader in semiconductor solutions. This high-performance MOSFET is engineered to deliver optimal power efficiency and reliability for a wide range of applications, including power supplies, motor drives, and other power-intensive electronic systems.

Key Features

  • Low RDS(on): The device boasts an exceptionally low on-state resistance, which translates to reduced conduction losses and improved overall efficiency in power conversion applications.
  • High Current Capability: With its ability to handle high current levels, the FDBL9403-F085T6 is suitable for demanding environments where robust performance is critical.
  • Fast Switching Speed: The rapid switching characteristics of this MOSFET make it ideal for high-frequency power switching applications, leading to less switching loss and better performance in power supplies and inverters.
  • PowerTrench® Technology: ON Semiconductor's proprietary PowerTrench® technology is a cornerstone of the FDBL9403-F085T6, ensuring minimized gate charge and low intrinsic capacitance for faster and more efficient operation.
  • High-Temperature Performance: Engineered to withstand high operating temperatures, this MOSFET maintains its integrity and performance even under thermal stress, making it suitable for industrial-grade applications.

Applications

The versatile FDBL9403-F085T6 is designed for a broad range of applications, including:

  • DC/DC converters
  • AC/DC power supplies
  • Motor drives
  • Power management systems
  • Electronic vehicles and charging stations
  • Renewable energy inverters

Technical Specifications

  • VDS (Drain-Source Voltage): 40 V
  • ID (Continuous Drain Current): 195 A
  • RDS(on) (Typical): 1.35 mΩ
  • Package: PQFN 5x6 mm

In conclusion, the ON Semiconductor FDBL9403-F085T6 N-Channel PowerTrench® MOSFET is a high-performance solution that brings efficiency, reliability, and robustness to demanding power applications. Its cutting-edge technology and strong electrical characteristics make it a top choice for designers looking to optimize their power systems.
