The FDWS9509L-F085 is a high-performance, dual N-Channel PowerTrench<sup>® MOSFET brought to you by ON Semiconductor, a renowned leader in power and signal management. Designed with advanced process technology, this MOSFET provides excellent R<sub>DS(on), low gate charge, and operation with gate voltages as low as 4.5V, making it suitable for a wide range of power applications.

This device is optimized for power switching applications where high efficiency is a priority. With its dual N-Channel configuration, it is perfect for synchronous rectification in DC/DC converters, which can be used in computing, telecom, and consumer applications. The FDWS9509L-F085 also features a 30V drain-source voltage (V<sub>DSS), which is ideal for systems that require a moderate voltage range.

ON Semiconductor's commitment to innovation is evident in the FDWS9509L-F085's design, which includes a robust and reliable construction that ensures long-term stability and performance. The MOSFET's low intrinsic capacitance and resistance contribute to its high-speed switching capabilities, thereby reducing losses and improving overall system efficiency.

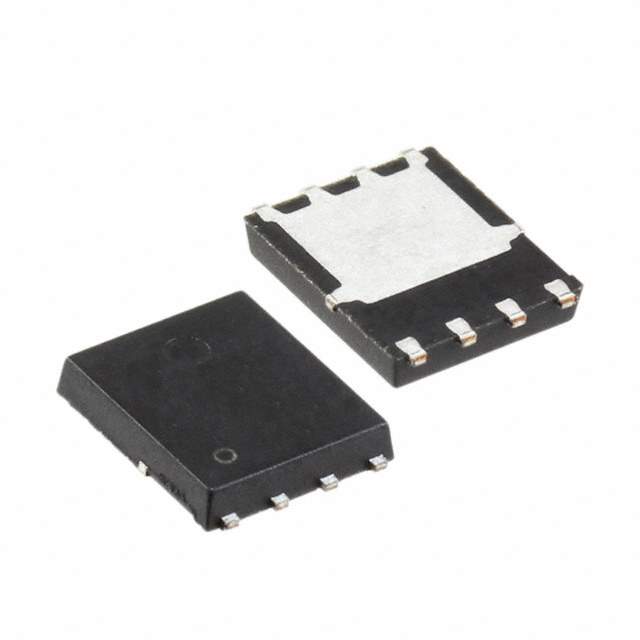

The FDWS9509L-F085 is packaged in a compact, surface-mount Power56 package, which not only saves space but also contributes to better thermal performance and lower on-resistance. Its package is RoHS compliant and Halogen-free, supporting the global initiative for environmentally friendly electronic components.

In summary, the FDWS9509L-F085 is an exceptional choice for designers looking for a MOSFET that offers low conduction losses, fast switching speeds, and high efficiency. With its robust design and advanced features, this product from ON Semiconductor stands out as a superior solution for modern power management challenges.

Key Features:

• Dual N-Channel MOSFET configuration
• Low R<sub>DS(on) for high efficiency
• 4.5V to 8V gate drive voltage range
• 30V drain-source voltage (V<sub>DSS)
• Power56 package for compact footprint and enhanced thermal performance
• RoHS compliant and Halogen-free
