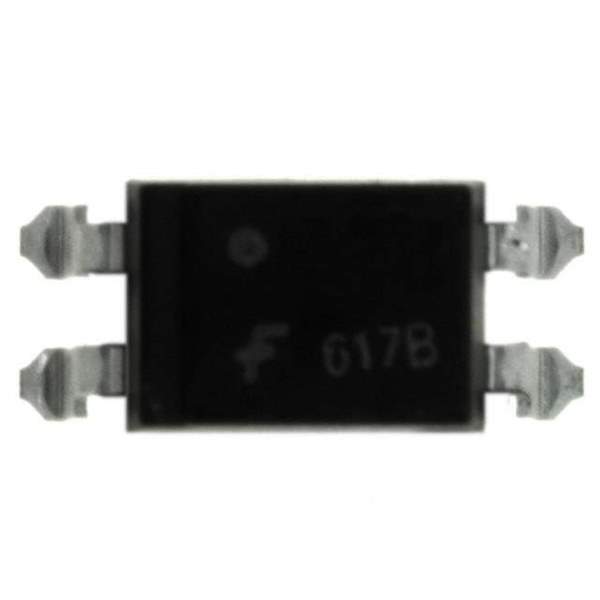

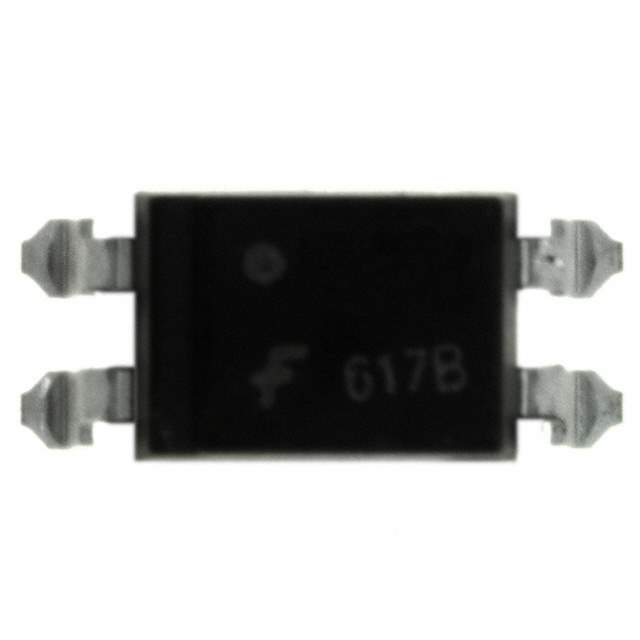

The ON Semiconductor FOD617B3SD is a high-performance optocoupler designed to provide electrical isolation between input and output with a high current transfer ratio (CTR). This device is a critical component for applications that require signal isolation to protect electronics from high voltages, electrical noise, or surges that can occur in various industrial and consumer environments.

Key Features

• Electrical Isolation: The FOD617B3SD offers reliable electrical isolation between the input (LED) and output (phototransistor) with an isolation voltage of 5000Vrms, which is essential for safety and equipment protection.
• High Current Transfer Ratio (CTR): With a CTR range from 50% to 600%, this optocoupler ensures efficient signal transmission from input to output, providing a robust communication channel across the isolation barrier.
• Wide Operating Temperature Range: The device is designed to operate over a wide temperature range from -55°C to +110°C, making it suitable for harsh environmental conditions.
• Package: The FOD617B3SD comes in a compact 4-pin Small Outline Package (SOP) that is suitable for high-density mounting and is compatible with standard SMT processes.
• Lead-Free and RoHS Compliant: This optocoupler meets environmental regulations, being lead-free and RoHS compliant, making it an eco-friendly choice for electronic designs.

Applications

The FOD617B3SD is versatile and can be used in a variety of applications, including but not limited to:

• Power supply regulation and monitoring
• Signal isolation in PLCs (Programmable Logic Controllers)
• Isolated error amplifiers
• Industrial controls
• Isolated data communication

With its robust isolation capabilities and high CTR, the ON Semiconductor FOD617B3SD optocoupler is an ideal choice for designers looking to enhance the safety and reliability of their electronic systems. Its compact size and compliance with environmental standards further ensure its suitability for modern electronic applications.
