ON Semiconductor LC709203FXE-03MH Battery Fuel Gauge IC

The ON Semiconductor LC709203FXE-03MH is a highly accurate fuel gauge IC designed for single-cell lithium-ion (Li-ion) batteries. This compact, feature-rich component is an essential addition to portable applications, where precise battery monitoring is crucial for user experience and safety. It is specifically tailored for use in smartphones, digital cameras, and other portable equipment, providing real-time data on battery charge status and health.

With an operating voltage range of 2.5V to 5.5V, the LC709203FXE-03MH is versatile and can adapt to various power environments. This ensures compatibility with a wide range of single-cell Li-ion batteries, making it a flexible choice for designers. The IC's power-saving features are also noteworthy, as they help to extend the battery life of the end product by minimizing the energy consumption of the battery monitoring process.

The device offers an impressive array of functionalities, including automatic power-down, an alarm function to indicate low battery, and a thermistor interface for temperature monitoring. This ensures that the IC not only monitors the battery's charge level but also its safety and operating conditions. The LC709203FXE-03MH's I2C interface facilitates easy communication with a microcontroller, allowing for seamless integration into a system's power management framework.

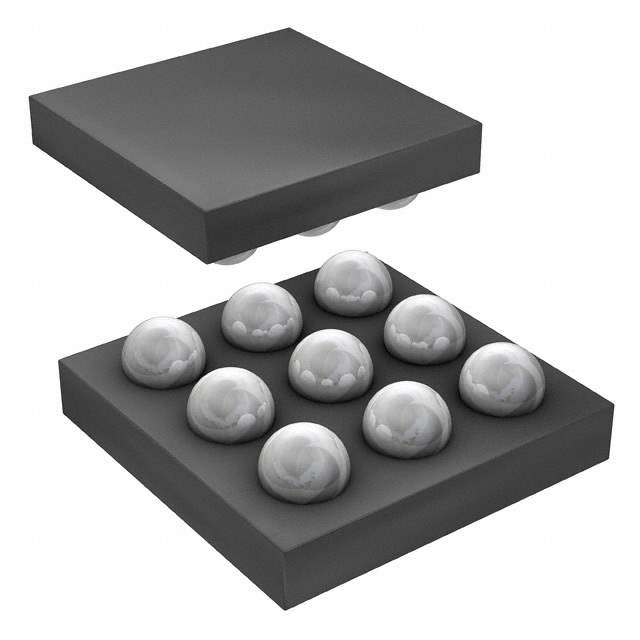

Calibration is simplified with the LC709203FXE-03MH, as it incorporates an Automatic Life Adjustment feature that adjusts the battery model to match the battery's deterioration over time. This helps maintain accuracy throughout the battery's lifespan, providing reliable data to the end-user. The IC's compact package, measuring just 3mm x 3mm, ensures that it can be easily incorporated into space-constrained designs without compromising on functionality.

In summary, the ON Semiconductor LC709203FXE-03MH is a smart, efficient solution for battery fuel gauging, offering accuracy, a rich feature set, and a design optimized for portable devices. Its integration into battery-powered applications helps enhance the overall user experience by providing critical information regarding battery life and health.
