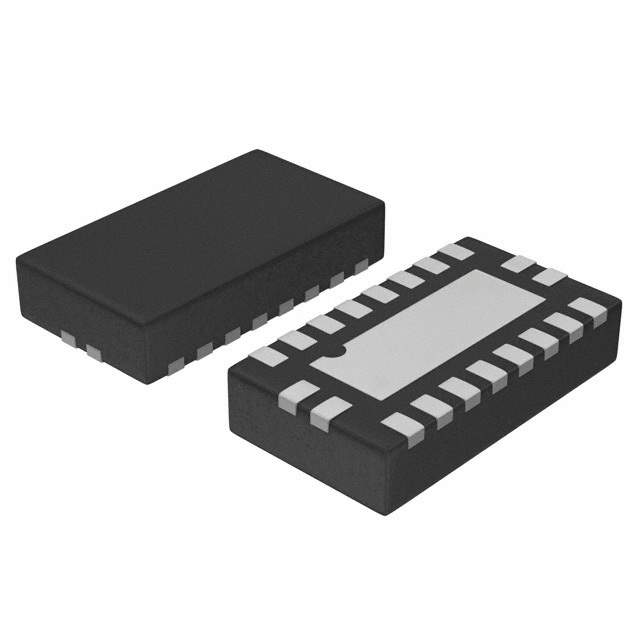

Product Overview: MC74LCX244MNTWG by ON Semiconductor

The MC74LCX244MNTWG from ON Semiconductor is a high-performance, non-inverting octal buffer and line driver designed to be used in applications requiring high-speed data transfer and low power consumption. This integrated circuit is part of the LCX family which is fabricated with an advanced CMOS technology to achieve superior switching performance with high immunity to noise.

With its 3.3V power supply, the MC74LCX244MNTWG is particularly suitable for interfacing with 5V systems, thus providing a bridge that ensures compatibility between different voltage domains in a mixed 3.3V/5V system. This feature is made possible due to the 5V tolerant inputs, which allow the device to receive higher voltage signals without damage or logic level errors.

Key Features:

• Logic Type: Buffer, Non-Inverting
• Number of Elements: Octal (8-Bit)
• Supply Voltage: 2.3V to 3.6V, with 5V tolerant inputs
• Output Current: 24mA
• Operating Temperature: -40°C to +85°C
• Mounting Type: Surface Mount
• Package / Case: TSSOP-20
• High-Speed: Propagation Delay Time of 3.8ns at 3.3V

The device's high drive capability allows it to drive heavily loaded outputs without compromising signal integrity, making it an excellent choice for bus interface or signal buffering applications. Additionally, the MC74LCX244MNTWG features power-down high impedance inputs and outputs, which minimizes power consumption when the device is not actively driving a signal.

ON Semiconductor ensures that this buffer and line driver meets the stringent requirements for industrial and commercial applications by providing a robust thermal performance and a wide operating temperature range. The MC74LCX244MNTWG comes in a compact TSSOP-20 package, making it ideal for space-constrained applications.

Whether you are designing a complex digital system or looking for a reliable component for signal buffering, the MC74LCX244MNTWG from ON Semiconductor offers a blend of high-speed operation, low power consumption, and the reliability required for modern electronic applications.
