ON Semiconductor MC7808BTG Voltage Regulator

The ON Semiconductor MC7808BTG is a fixed voltage regulator integrated circuit designed to offer thermal overload protection, safe area protection, and short circuit protection while maintaining a stable voltage output. This device is part of the 7800 series voltage regulators, which are known for their reliability and ease of use in a wide range of electronic applications.

Key Features

• Output Voltage: This regulator provides a fixed output voltage of 8V, which is suitable for circuits that require a stable DC voltage.
• Output Current: The MC7808BTG is capable of delivering up to 1A of output current, making it suitable for moderate power requirements.
• Thermal Overload Protection: The device includes an internal thermal shutdown mechanism that prevents damage from overheating.
• Safe Area Protection: Its safe area protection ensures that the regulator operates within its safe operating area (SOA) under varying conditions.
• Short Circuit Protection: The built-in short circuit protection feature helps to safeguard the device and the load from potential damage due to short circuits.

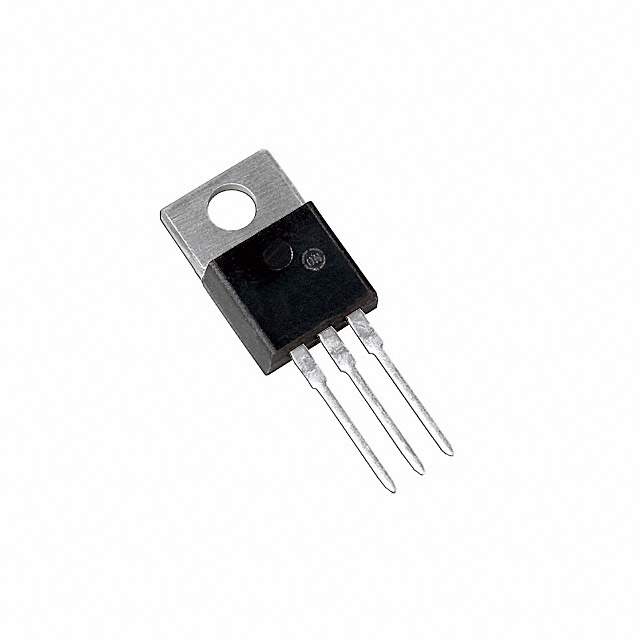

• Package: The MC7808BTG comes in a TO-220 package, which is widely used and known for its good heat dissipation properties.
• No External Components Required: This regulator is designed to work without the need for external components, although capacitors can be added to improve transient response.

Applications

The MC7808BTG is a versatile component suitable for a variety of electronic applications, including:

• Power supplies for electronic devices and instruments
• Linear power regulators in consumer electronics
• Motor control circuits
• LED lighting systems
• Automotive electronics

With its robust design and comprehensive protection features, the ON Semiconductor MC7808BTG voltage regulator is a reliable choice for designers looking to ensure a stable power supply in their electronic projects.
