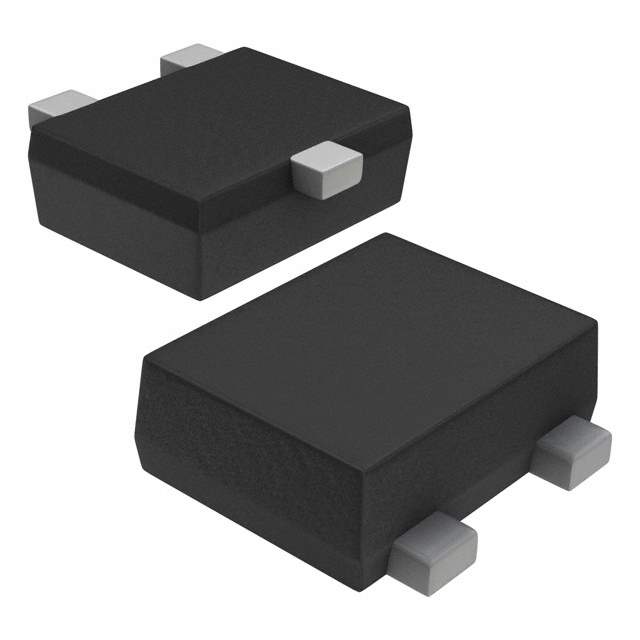

ON Semiconductor MCH3109-TL-E N-Channel MOSFET

The MCH3109-TL-E is a high-performance N-Channel Metal Oxide Semiconductor Field-Effect Transistor (MOSFET) designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This MOSFET is designed to deliver efficient power management and is suitable for a wide range of applications, including switching power supplies, motor controls, and power management tasks within industrial, automotive, and consumer electronics sectors.

Key Features

• Low On-Resistance: The MCH3109-TL-E boasts a low on-resistance, which reduces power losses and improves efficiency in high-current applications.
• High-Speed Switching: It is designed for high-speed switching applications, which makes it ideal for use in power conversion and management systems.
• High Reliability: ON Semiconductor's commitment to quality ensures that this MOSFET operates reliably over a wide temperature range and under various environmental conditions.
• Low Drive Voltage: The device can be driven at low voltages, making it compatible with modern microcontrollers and logic-level devices.

Electrical Characteristics

• Drain-Source Voltage (V<sub>DS): The maximum drain-source voltage is rated at 30V, which allows for a wide range of operations in different circuit designs.
• Continuous Drain Current (I<sub>D): It supports a continuous drain current of up to 6A, providing substantial current handling capability for various applications.
• Gate Threshold Voltage (V<sub>GS(th)): The gate threshold voltage is specified to ensure reliable switching performance.
• Total Power Dissipation: The MOSFET is capable of dissipating power efficiently, thereby maintaining stability and longevity of the device.

Applications

The MCH3109-TL-E is versatile and can be used in a variety of applications. Its high-speed switching and low on-resistance make it particularly suitable for:

• DC/DC converters
• Power supply circuits
• Motor drives and controllers
• LED lighting solutions
• Load switches
• Battery management systems

With its robust design and ON Semiconductor's reputation for reliability, the MCH3109-TL-E N-Channel MOSFET is an excellent choice for designers looking to enhance power efficiency and performance in their electronic projects.
