The MCH6307-TL-E from ON Semiconductor is a high-performance P-Channel MOSFET designed to deliver efficient power management and switching capabilities in a compact surface-mount package. This MOSFET is an ideal choice for a range of electronic applications, including load switching, power management, and various types of circuit protection.

Key Features

• Device Type: P-Channel MOSFET
• Drain-Source Voltage (V<sub>DS): -20V
• Continuous Drain Current (I<sub>D): -6A
• Power Dissipation (P<sub>D): 1.25W
• Gate-Source Voltage (V<sub>GS): ±8V
• Low On-Resistance: This MOSFET features a low on-state resistance, which minimizes power loss and improves overall efficiency.
• High-Speed Switching: The MCH6307-TL-E is designed for fast switching applications, ensuring quick response times in circuits that require rapid power modulation.

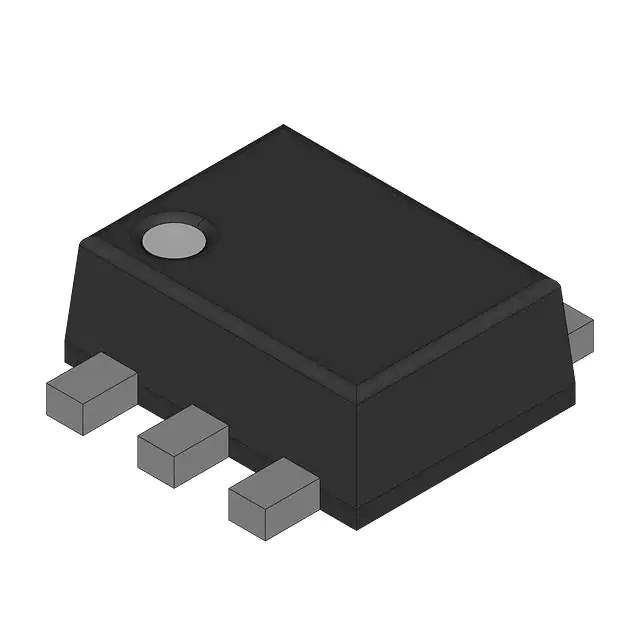

• Surface-Mount Package: The MOSFET comes in a compact TSMT3 package, making it suitable for space-constrained applications.
• RoHS Compliant: The product meets the Restriction of Hazardous Substances Directive, ensuring it is environmentally friendly and safe for use in electronic equipment.

Applications

The MCH6307-TL-E P-Channel MOSFET is versatile and can be used in various applications, including:

• Power management systems
• DC/DC converters
• Battery powered devices
• Load switches
• Motor control circuits
• Protection circuits

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability. The MCH6307-TL-E MOSFET is manufactured with high standards to ensure stable performance and longevity, making it a reliable choice for both commercial and industrial applications.
