ON Semiconductor MMBT2222ATT3G NPN Bipolar Transistor

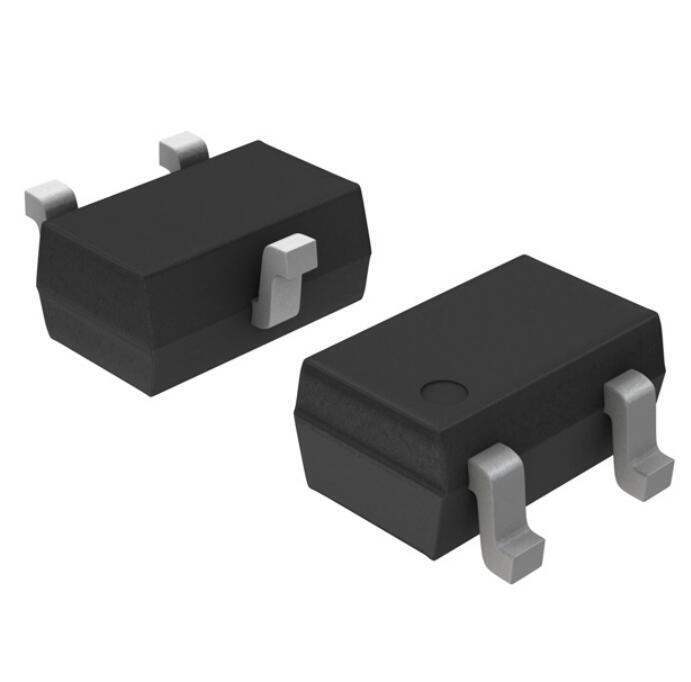

The MMBT2222ATT3G is a high-performance NPN bipolar junction transistor (BJT) from ON Semiconductor, designed for general-purpose amplifier and switching applications. This versatile transistor is housed in a compact SOT-23 surface-mount package, making it ideal for space-constrained applications.

With its robust design, the MMBT2222ATT3G offers a collector-emitter voltage (VCEO) of 40V and a collector current (IC) capability of up to 600mA, which allows it to handle moderate power switching operations efficiently. The device is characterized by a collector-base voltage (VCBO) of 75V and an emitter-base voltage (VEBO) of 6V, providing a wide operating range for various electronic circuits.

The transistor features a DC current gain (hFE) range of 100 to 300, ensuring adequate amplification in most common applications. Its high gain bandwidth product (fT) of 300MHz makes it suitable for high-frequency operations, which is particularly beneficial for RF and mixed-signal designs.

ON Semiconductor's MMBT2222ATT3G is also known for its low saturation voltage, which reduces power loss and improves efficiency when the transistor is in the ON state. This characteristic is essential for battery-operated devices where power conservation is critical.

As an environmentally conscious manufacturer, ON Semiconductor ensures that the MMBT2222ATT3G complies with RoHS directives, making it lead-free and free from other hazardous substances. This compliance reflects the company's commitment to sustainability and the global initiative to reduce the environmental impact of electronic components.

Applications for the MMBT2222ATT3G are diverse and include, but are not limited to, load switches, power management circuits, signal amplification, and driver stages in both analog and digital circuits. Its reliability and performance make it a preferred choice for design engineers in various industries, including consumer electronics, automotive, and telecommunications.

In summary, the MMBT2222ATT3G from ON Semiconductor is a versatile and efficient NPN transistor that offers excellent performance in a wide range of electronic applications, all while adhering to environmental standards.
