MPSW01ARLRAG

Part No MPSW01ARLRAG
Manufacturer ON Semiconductor
Catalog Transistors (BJT) - Single

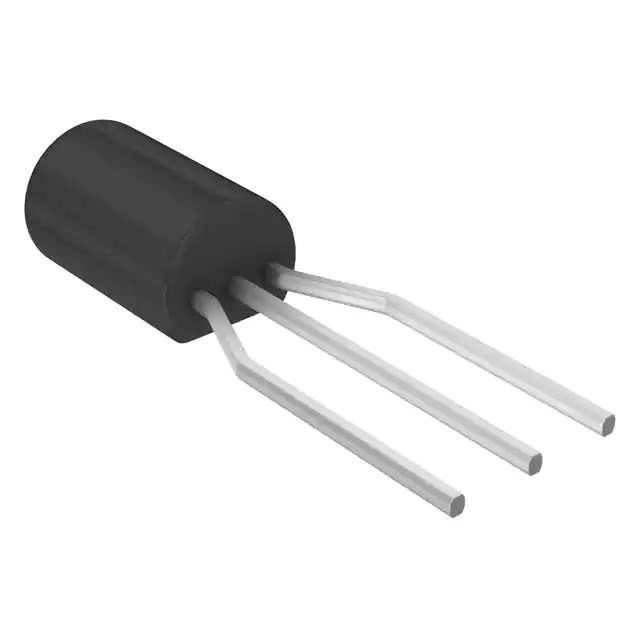

Description TRANS NPN 40V 1A TO92
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr ON Semiconductor
Package Tape & Reel
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 1 A
Voltage - Collector Emitter Breakdown (Max) 40 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 100mA, 1A
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 60 @ 100mA, 1V
Power - Max 1 W
Frequency - Transition 50MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-226-3, TO-92-3 Long Body (Formed Leads)
Supplier Device Package TO-92 (TO-226)
Base Product Number MPSW01
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
Win Source Part Number 643941-MPSW01ARLRAG
Ultra Librarian 3D Model Ultra Librarian MPSW01ARLRAG CAD Model

Description

Introducing the MPSW01ARLRAG Transistor from ON Semiconductor

The MPSW01ARLRAG is a high-performance, bipolar NPN transistor designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This transistor is a versatile component that finds applications in a wide range of electronic circuits, including amplifiers, switches, and signal processing devices. It is well-suited for consumer, industrial, and telecommunication markets due to its reliability and efficiency.

The MPSW01ARLRAG transistor boasts a collector-emitter voltage (VCEO) of 40V, which makes it suitable for medium voltage requirements. With a collector current (IC) of up to 500mA, it can handle moderate current loads, making it ideal for driving small motors, LEDs, and other medium-power devices. Its power dissipation (PD) is rated at 625mW, ensuring that it can sustain a fair amount of power without overheating, thus contributing to the longevity of the device it is incorporated into.

One of the key features of the MPSW01ARLRAG is its high current gain (hFE), which typically ranges from 100 to 300. This high gain allows for significant amplification of the input signal, making it an excellent choice for audio amplifiers and other applications where signal amplification is required. The device is also characterized by its low saturation voltage, which reduces power loss and improves efficiency in switching applications.

The MPSW01ARLRAG is packaged in a TO-92 casing, which is widely used for through-hole components. This package is known for its ease of handling and soldering onto a printed circuit board (PCB). The TO-92 package also provides sufficient thermal performance for the transistor's power level.

ON Semiconductor is committed to environmental sustainability, and the MPSW01ARLRAG reflects this commitment. It is designed to meet various environmental standards, ensuring that it is not only a high-quality electronic component but also an environmentally responsible choice for manufacturers and designers looking to create eco-friendly products.

Overall, the MPSW01ARLRAG from ON Semiconductor is a reliable and efficient choice for designers who require a medium-power NPN transistor that offers a blend of performance, power handling, and environmental consideration.
