The MSRF860G is a robust and efficient rectifier diode designed by ON Semiconductor, renowned for its high-quality electronic components. This product is specifically tailored to meet the demanding requirements of high-frequency rectification and freewheeling applications in switch-mode power supplies and other power conversion systems.

Key Features:

• High Reverse Voltage Capability: The MSRF860G has a reverse voltage rating of 600V, making it suitable for applications requiring a high breakdown voltage.
• High Forward Surge Current: With a forward surge current of 150A, this diode can handle high current spikes without failure, ensuring reliability in harsh conditions.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which minimizes power loss and improves efficiency in power conversion circuits.
• Fast Switching Speed: The diode’s fast recovery time is ideal for high-frequency applications, reducing switching losses and enhancing overall performance.
• Robust Construction: Encased in a plastic package, the MSRF860G is designed for durability and long-term reliability.

Applications:

• Switch-mode power supplies (SMPS)
• Power factor correction (PFC) circuits
• DC-DC converters
• Freewheeling diodes in inverter circuits
• Reverse battery protection

Package and Environmental Compliance:

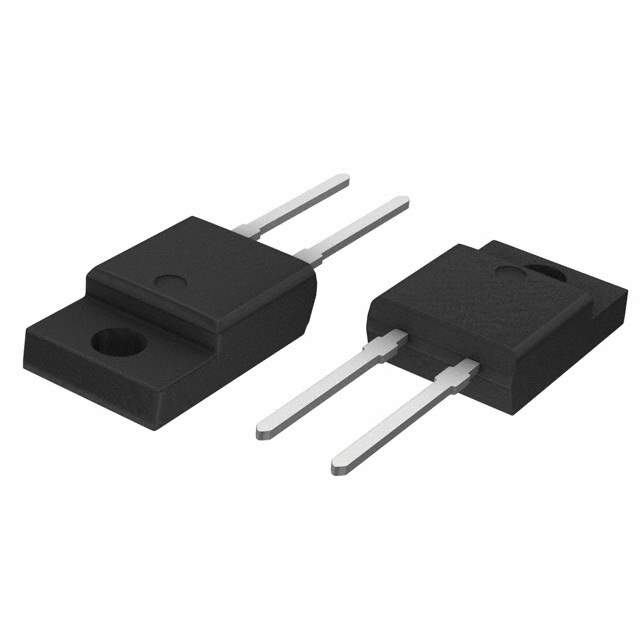

The MSRF860G is available in a TO-220AC package, which is designed for easy mounting on printed circuit boards. ON Semiconductor is committed to environmental stewardship and ensures that the MSRF860G complies with RoHS (Restriction of Hazardous Substances) directives, making it a preferred choice for eco-conscious applications.

Conclusion:

With its high voltage and current capabilities, low power loss, fast switching, and robust package, the MSRF860G from ON Semiconductor is an excellent choice for designers looking to enhance the efficiency and reliability of their power management systems. Its compliance with environmental standards further underlines its suitability for modern electronic applications.
