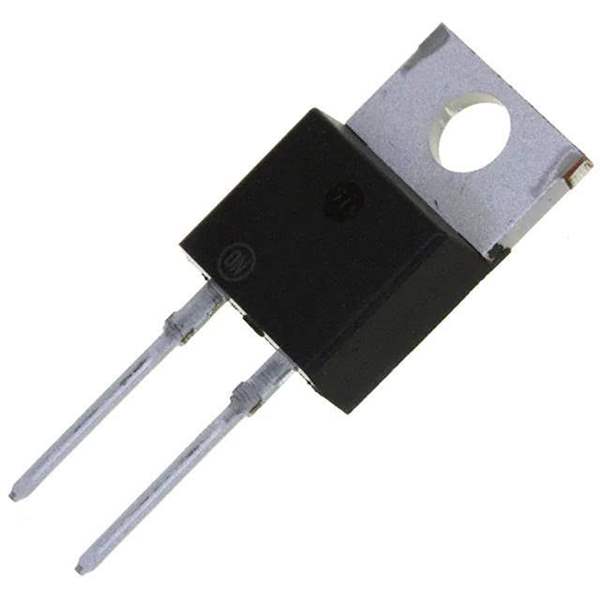

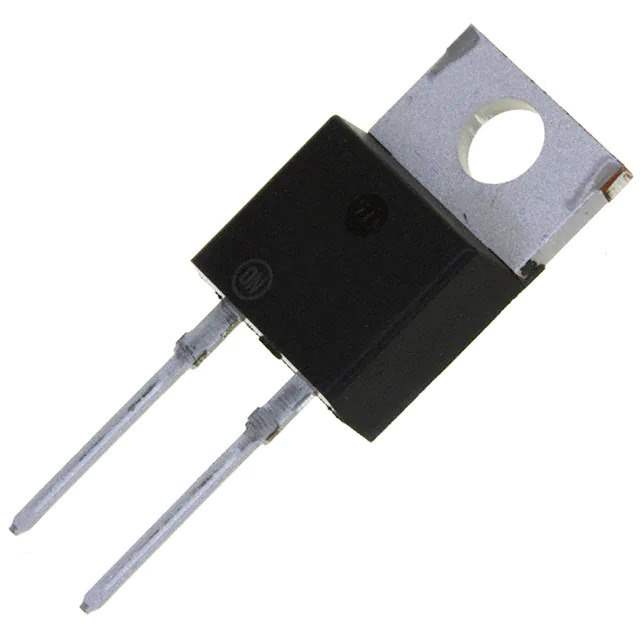

The ON Semiconductor MUR1540 is a state-of-the-art ultra-fast recovery diode designed to cater to a variety of power conversion and switching applications. This diode is a perfect fit for high-performance solutions where efficiency and reliability are of utmost importance. The MUR1540 is engineered to minimize reverse recovery time (trr), reduce switching losses, and provide a robust and durable component for high-speed switching circuits.

Key Features

• Ultra-Fast Recovery Time: The MUR1540 boasts an impressive reverse recovery time, which is crucial for reducing the losses during the switching process and improving the overall efficiency of the circuit.
• High Surge Capacity: With a high surge current handling capability, this diode can withstand transient over-current conditions, making it suitable for applications that experience frequent power surges.
• Low Forward Voltage Drop: The low forward voltage drop feature ensures minimal power loss during conduction, thereby enhancing the energy efficiency of the entire system.
• High Reliability: Built to ON Semiconductor's rigorous quality standards, the MUR1540 is designed for long-term reliability and stable performance under various conditions.
• Reverse Voltage: It can handle a reverse voltage of up to 400 volts, providing ample protection against reverse bias conditions.

Applications

The versatility of the MUR1540 makes it ideal for a wide range of applications. It is commonly used in power supply circuits, power management systems, converters, free-wheeling diodes, and other high-frequency PWM (Pulse Width Modulated) systems. Its attributes make it particularly well-suited for use in switch-mode power supplies, motor controllers, and other devices that require fast and efficient diode performance.

Product Specifications

Parameter Value Package TO-220AB Peak Reverse Voltage (V<sub>RRM) 400 V Average Rectified Current (I<sub>AV) 15 A Reverse Recovery Time (trr) 35 ns Operating Junction Temperature (T<sub>J) -65°C to +175°C

In conclusion, the ON Semiconductor MUR1540 is a superior choice for designers looking for a diode that offers fast switching, low power loss, and high reliability. Its robust design and high-performance characteristics ensure it can handle the demanding requirements of modern electronic circuits.
