The MURS320T3G from ON Semiconductor is a high-performance ultrafast rectifier designed to meet the stringent requirements of today's power electronics industry. This component is ideal for use in high-frequency rectification and freewheeling applications in switch-mode power supplies, as well as other power-switching applications.

Key Features


• Voltage Rating: The MURS320T3G has a reverse voltage rating of 200 volts, making it suitable for a variety of applications that require a high breakdown voltage.

• Current Rating: With a forward current rating of 3 amperes, this rectifier can handle significant power levels, perfect for compact and efficient designs.

• Ultrafast Recovery Time: The device boasts an ultrafast recovery time of just 35 nanoseconds, reducing power loss and improving efficiency in high-speed switching applications.

• Low Forward Voltage Drop: A low forward voltage drop minimizes power dissipation and improves overall system efficiency, which is critical in power-sensitive designs.

• High Surge Capacity: It can withstand high surge currents, offering robust performance during transient conditions.

• Temperature Range: Operating junction temperature ranges from -55°C to +175°C, ensuring reliability across a wide range of environmental conditions.


Package and Compliance

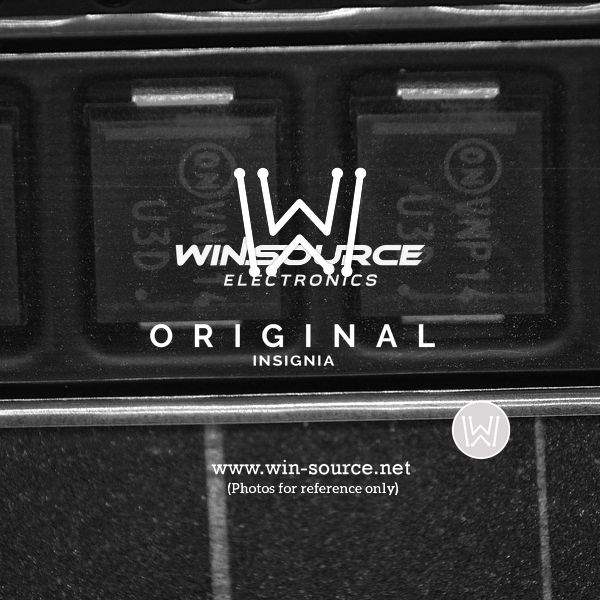

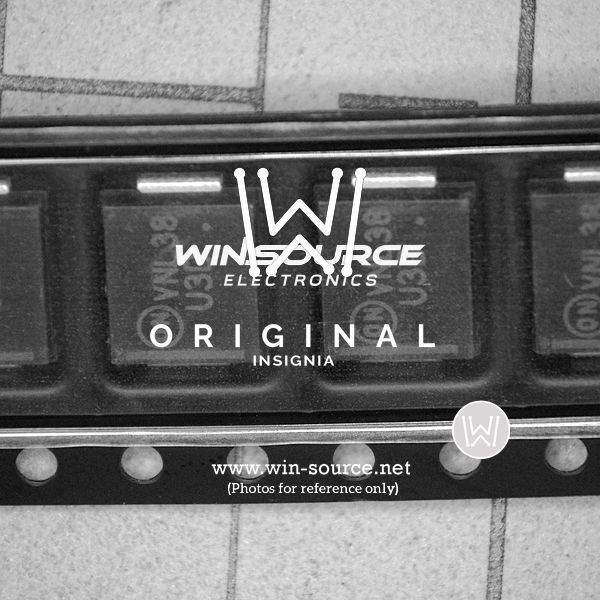

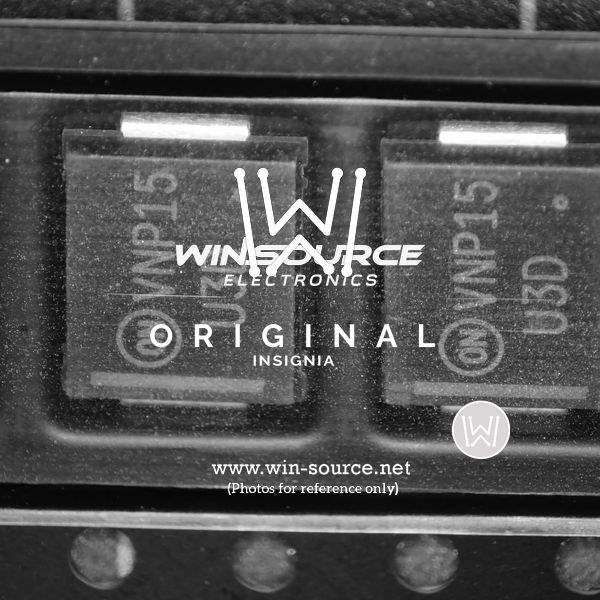

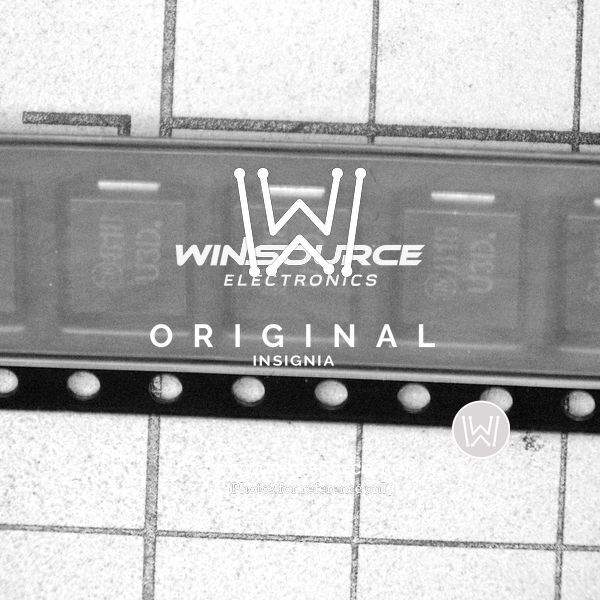

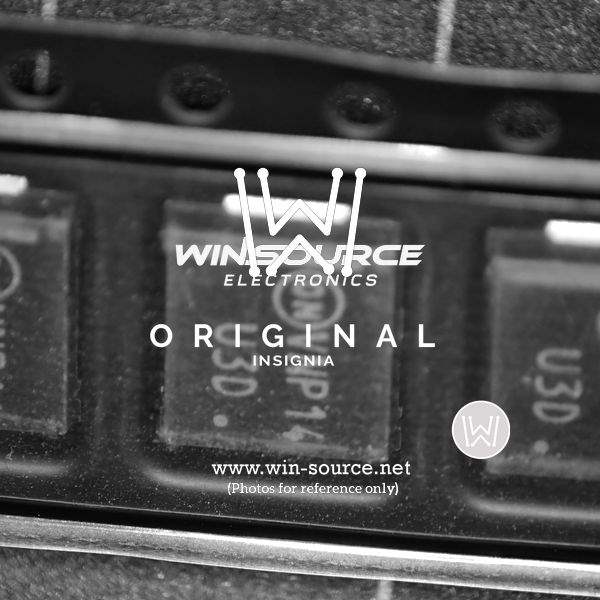

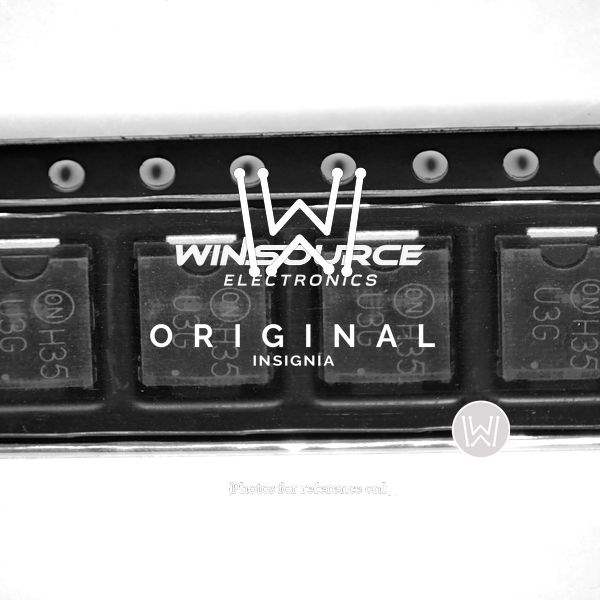

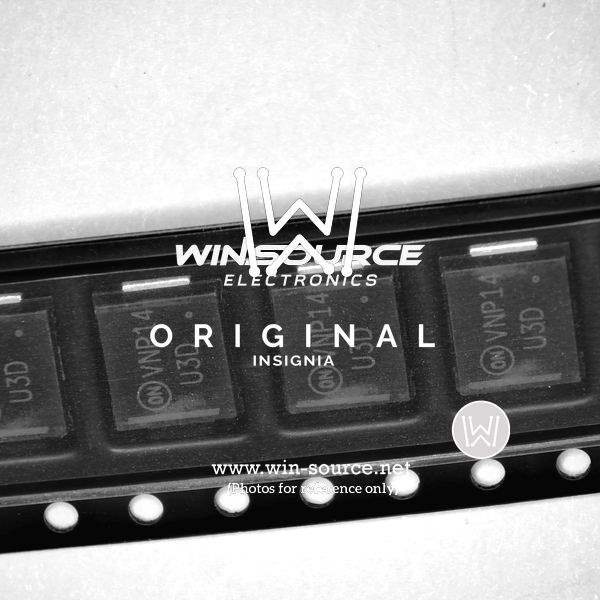

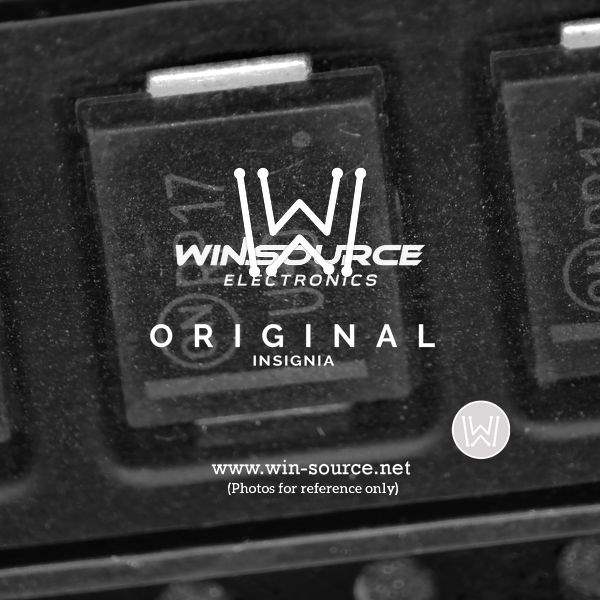

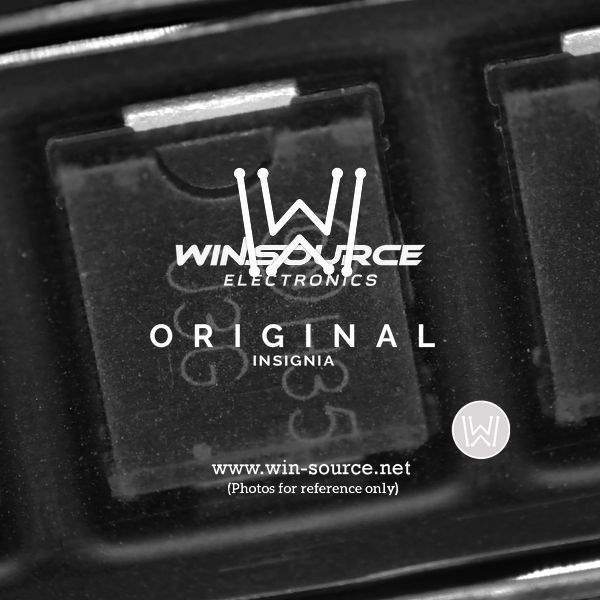

The MURS320T3G comes in a compact surface-mount SMB (DO-214AA) package, which is ideal for automated assembly processes and helps to save space on the PCB. The device is also compliant with RoHS and Halogen-Free standards, making it suitable for use in environmentally sensitive applications.

Applications

Due to its high-speed and efficient performance, the MURS320T3G is commonly used in:


• Switch-mode power supplies (SMPS)

• Power factor correction (PFC) circuits

• Automotive environments and systems

• DC-DC converters

• Free-wheeling diodes in converters and motor controllers


With its combination of high-speed switching, thermal efficiency, and reliability, the MURS320T3G from ON Semiconductor is a top choice for engineers looking to optimize their power management designs.
