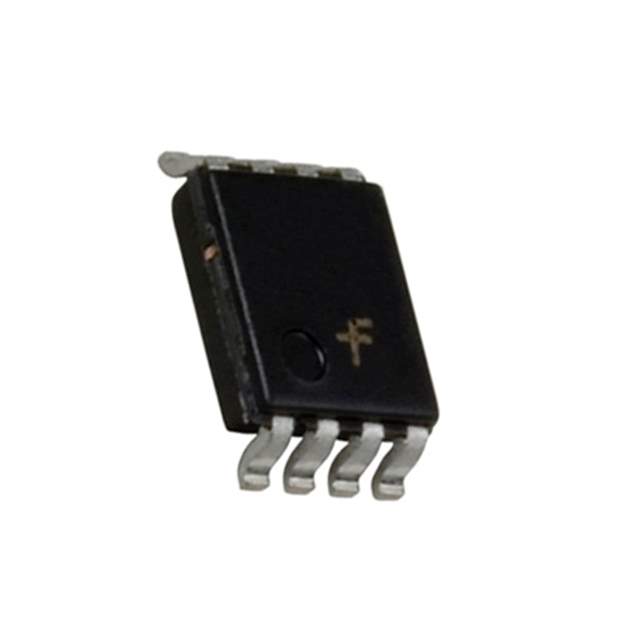

The ON Semiconductor NC7WZ08K8X-L22236 is a high-performance dual 2-input AND gate integrated circuit designed for use in a wide range of electronic applications. This compact and efficient IC is part of ON Semiconductor's extensive portfolio of logic devices, offering designers a reliable and flexible solution for their digital logic circuit needs.

Key Features

• Advanced Technology: Manufactured with advanced silicon gate CMOS technology, the NC7WZ08K8X-L22236 ensures low power consumption while maintaining high speed.
• Logic Type: Dual 2-Input AND Gate, which is fundamental in digital circuits for logical operations.
• Power Supply: The device operates over a broad voltage range (1.65V to 5.5V VCC) making it suitable for battery-operated and low-voltage applications.
• High-Speed Operation: With a propagation delay time significantly lower than that of typical CMOS devices, this IC is ideal for fast-switching applications.
• Package: Supplied in a space-saving US8 package, the NC7WZ08K8X-L22236 is designed for optimized board space utilization.
• Temperature Range: The device is operational over an industrial temperature range, ensuring reliable performance under varying environmental conditions.

Applications

The versatility of the NC7WZ08K8X-L22236 makes it suitable for a broad array of applications. These include, but are not limited to:

• Smartphones and portable devices
• Computing devices such as laptops and tablets
• Embedded systems
• Control systems
• Signal processing units
• Power management circuits

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The NC7WZ08K8X-L22236 is subjected to rigorous testing and quality control measures, ensuring that it meets the strict standards set by ON Semiconductor for reliability and performance.

Environmental Compliance

In alignment with global environmental standards, the NC7WZ08K8X-L22236 is designed with eco-friendly materials and is compliant with RoHS directives, ensuring a reduced environmental footprint.
