The NCP1014APL100R2G is a cutting-edge self-supplied monolithic switcher integrated circuit designed for high-performance offline power applications. Manufactured by ON Semiconductor, a leader in energy-efficient innovations, this IC offers a comprehensive solution for compact power supplies.

Key Features

• Integrated High-Voltage Switch: The NCP1014APL100R2G integrates a fixed-frequency current-mode controller with a 700 V MOSFET. This combination allows for robust and reliable switching capabilities suitable for a wide range of applications.
• Self-Supplying Capability: This IC eliminates the need for an auxiliary bias winding, simplifying the design and reducing overall costs. It draws power directly from the high-voltage rail, enhancing the power supply's efficiency.
• Frequency Jittering: To minimize EMI emissions, the NCP1014APL100R2G incorporates a frequency jittering feature, which helps in meeting regulatory standards and reduces the need for additional filtering components.
• Protection Features: The device is equipped with multiple protection features, including overvoltage, overload, and short-circuit protection, ensuring safe and reliable operation under various conditions.
• Low Standby Power: Designed with energy efficiency in mind, this IC maintains low standby power consumption, making it ideal for applications that require compliance with power-saving regulations.

Applications

ON Semiconductor's NCP1014APL100R2G is versatile and can be used in a variety of applications, including:

• AC-DC adapters for consumer electronics
• Standby and auxiliary power supplies
• Offline battery chargers
• LED lighting drivers
• Small home appliances

Package and Environmental Compliance

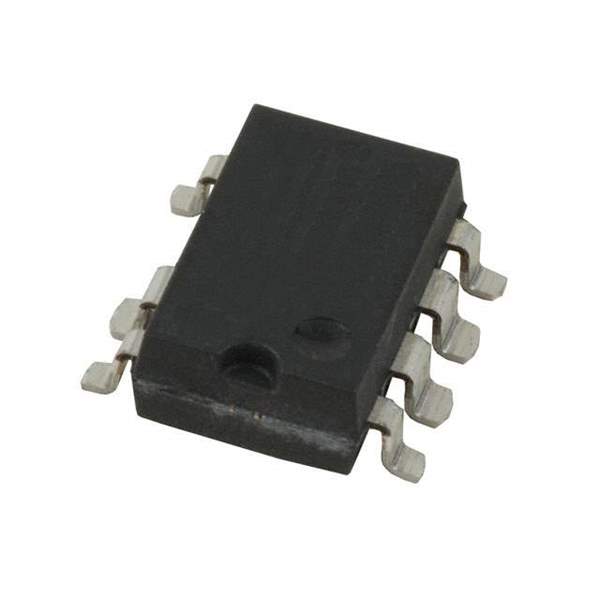

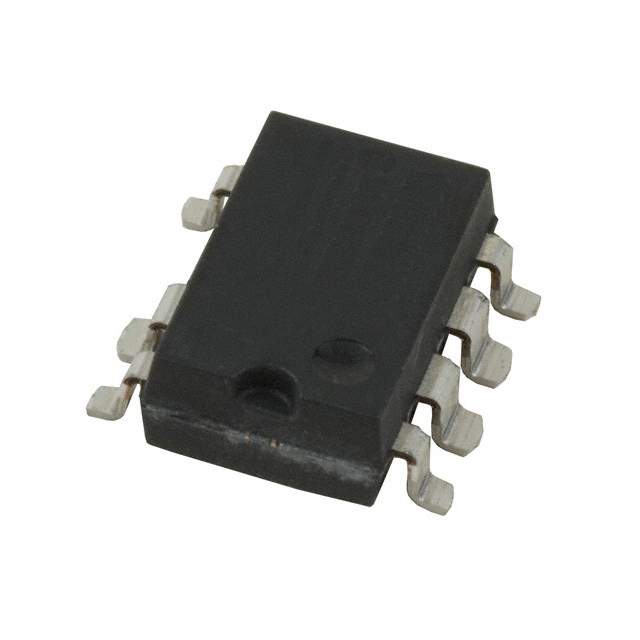

The NCP1014APL100R2G is available in a Pb-free PDIP-7 package, ensuring compliance with current RoHS directives. ON Semiconductor is committed to environmental stewardship and producing products that meet the highest standards of green manufacturing.

With its robust design, energy efficiency, and comprehensive protection features, the NCP1014APL100R2G from ON Semiconductor stands as a top choice for designers looking to create reliable and cost-effective power solutions.
