ON Semiconductor NCP114AMX260TCG: High-Performance Low-Dropout Voltage Regulator

The NCP114AMX260TCG is a state-of-the-art low-dropout (LDO) voltage regulator from ON Semiconductor, designed to deliver a fixed output voltage with high accuracy while maintaining stability and efficiency. This product is an excellent choice for portable and battery-powered applications where extended battery life and consistent performance are paramount.

With an output voltage of 2.6V, the NCP114AMX260TCG is capable of supplying up to 300 mA of output current. The device's high precision output voltage is maintained with a typical dropout voltage of only 135 mV at full load, which is particularly beneficial for systems where voltage margins are tight.

The NCP114AMX260TCG features a range of protections to ensure the longevity and reliability of both the regulator and the application it is used in. These include thermal shutdown, which prevents damage from overheating, and current limit, which protects against excessive currents that could otherwise harm the integrated circuit or the downstream components.

One of the key attributes of this LDO is its ultra-low quiescent current, which is typically 50 µA. This low idle current draw contributes to the overall energy efficiency of the end application, making the NCP114AMX260TCG an ideal choice for power-sensitive designs such as wearable technology, medical devices, and IoT sensors.

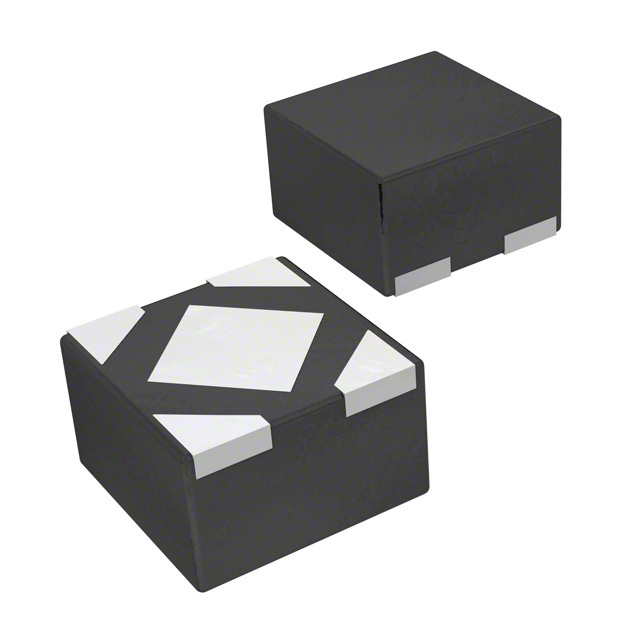

The device comes in a compact, space-saving 4-pin XDFN package, which is highly suitable for small form factor applications. Additionally, it is designed to work with a small 1 µF ceramic capacitor, reducing the overall footprint and bill of materials cost for the system designer.

ON Semiconductor's NCP114AMX260TCG also features excellent transient response, which is critical for applications that experience rapid changes in load, such as microprocessors and digital cameras. This ensures that the output voltage remains stable and within specified limits, even under dynamic conditions.

In summary, the NCP114AMX260TCG from ON Semiconductor is a robust and efficient solution for designers looking to enhance the performance and extend the battery life of their portable and space-constrained applications.
