ON Semiconductor NCP2821FCT1G - Audio Amplifier IC

The NCP2821FCT1G is a high-performance audio amplifier integrated circuit (IC) designed and manufactured by ON Semiconductor. This compact and efficient chip is specifically engineered to deliver high-quality audio amplification in portable applications. The NCP2821FCT1G is an ideal solution for mobile phones, portable media players, and other handheld devices where space is at a premium and power efficiency is crucial.

Featuring a Class D architecture, the NCP2821FCT1G offers an excellent power efficiency rating, which not only helps in extending battery life but also reduces the need for bulky heat sinks, thus enabling sleeker and lighter product designs. This audio amplifier is capable of delivering 2.65W of continuous average power to an 4 Ohm BTL load with less than 1% distortion (THD+N) from a 5V DC power supply, ensuring loud and clear sound output without compromising on sound quality.

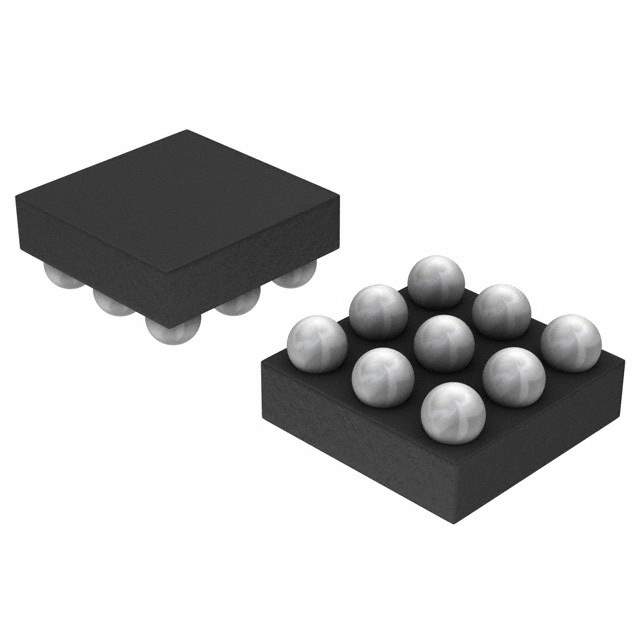

The NCP2821FCT1G comes in a compact, lead-free, halogen-free 9-bump flip-chip package, which is designed to occupy minimal board space. It features a built-in fixed gain setting, which simplifies the circuit design and reduces the number of external components required. Additionally, the device includes thermal shutdown protection and a pop-and-click suppression circuit that minimizes noise during turn-on and turn-off transitions, providing a smoother listening experience.

In terms of connectivity, the NCP2821FCT1G offers excellent flexibility. It is designed to work with a single supply voltage ranging from 2.8V to 5.5V, which makes it compatible with most standard battery technologies used in portable devices. The IC also includes an external shutdown mode, which can be controlled via a logic signal, allowing further power savings when the amplifier is not in use.

Overall, the NCP2821FCT1G from ON Semiconductor is a reliable and efficient choice for designers looking to enhance the audio performance of their portable electronic products while maintaining compactness and extending battery life.
