ON Semiconductor NCP3170ADR2G Overview

The NCP3170ADR2G is a high-performance, synchronous PWM buck converter integrated circuit from ON Semiconductor. Designed for versatility, it offers a compact solution for a wide range of applications requiring efficient power conversion. The device is capable of delivering up to 3 A of continuous output current with excellent load and line regulation. Its high efficiency and fast transient response make it suitable for powering the latest microprocessors, FPGAs, DSPs, and other power-sensitive components.

Key Features

• Output Current: Capable of delivering up to 3 A of continuous output current, making it suitable for high-demand applications.
• Voltage Range: The input voltage range is from 4.5 V to 18 V, which allows for flexibility in various system designs.
• Adjustable Output Voltage: The output voltage is adjustable down to 0.8 V with a precision reference voltage of 1.0%.
• High Efficiency: Integrated low RDS(on) switches contribute to high efficiency, reducing thermal stress and improving system reliability.
• Frequency Synchronization: It includes a frequency synchronization pin to reduce noise and EMI in sensitive applications.
• Protection Features: The device incorporates over-current and over-temperature protection to safeguard against operational anomalies.

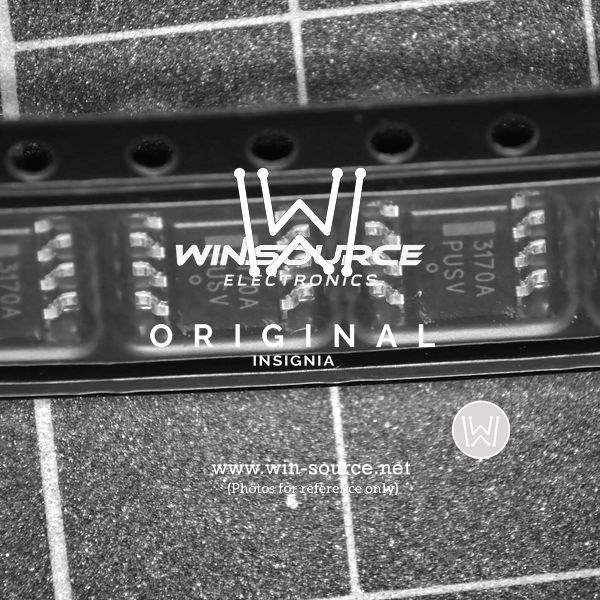

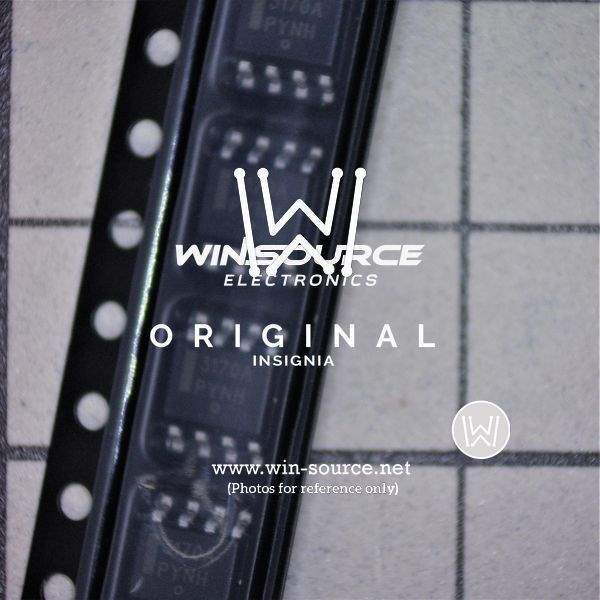

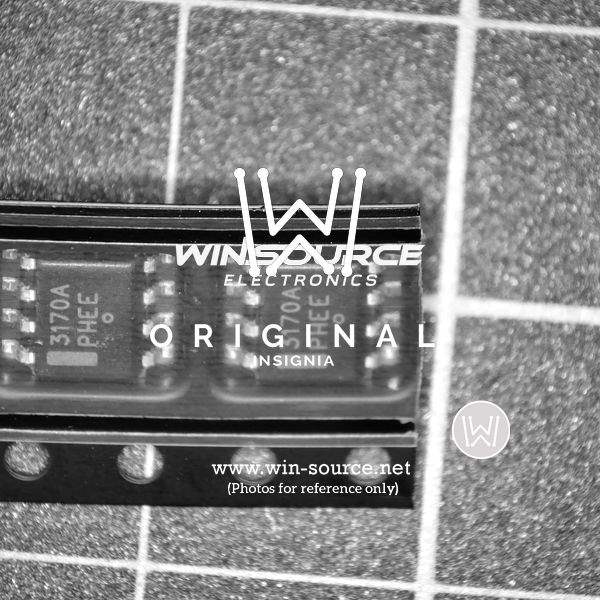

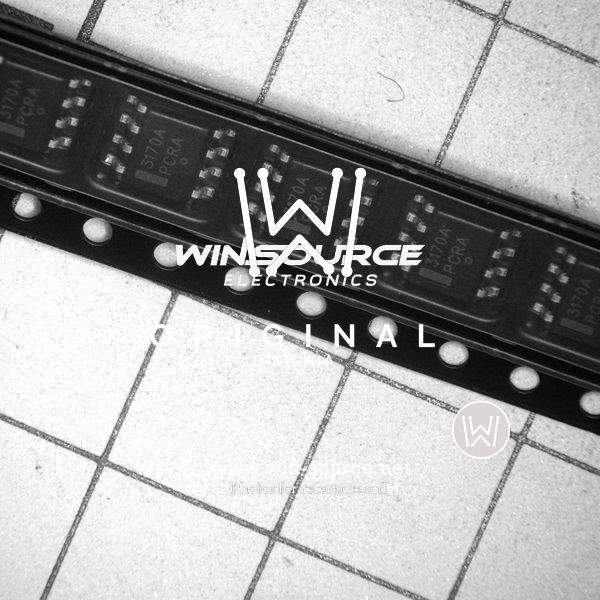

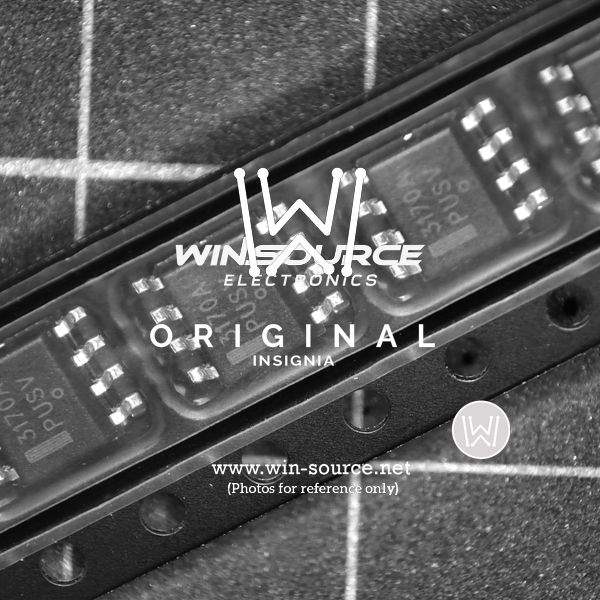

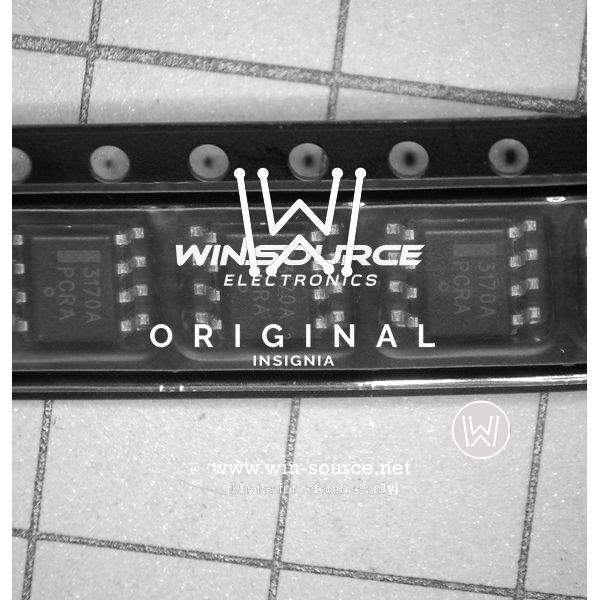

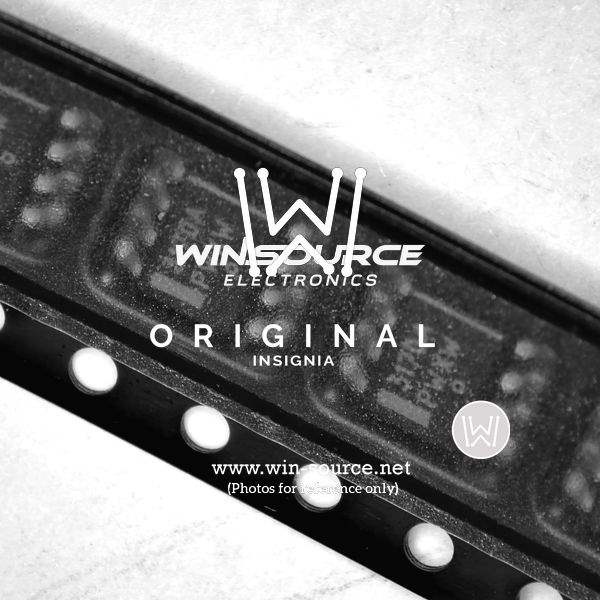

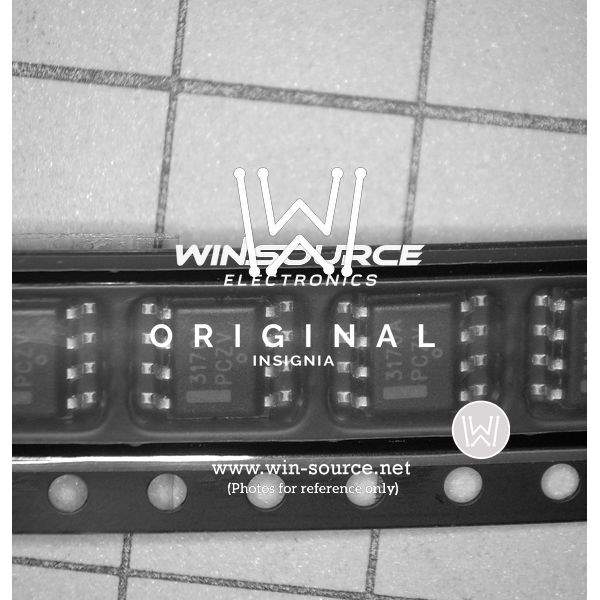

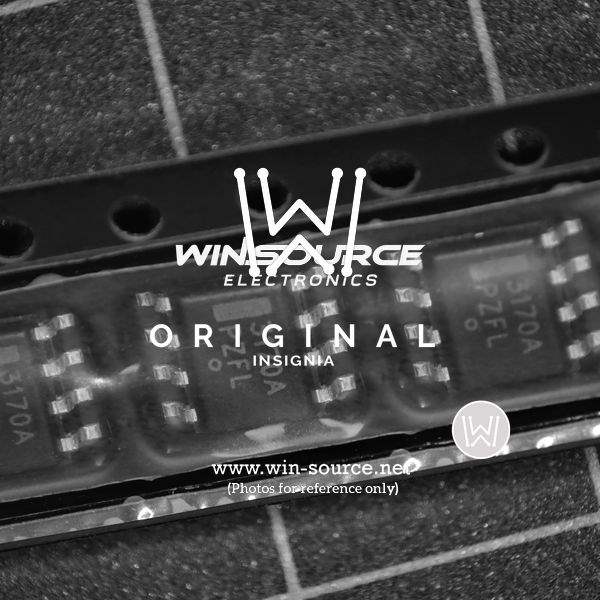

• Compact Package: Available in a compact 8-pin SOIC package, the NCP3170ADR2G is designed for space-constrained applications.

Applications

With its robust feature set, the NCP3170ADR2G is ideal for a variety of applications, including:

• Point-of-Load (POL) modules
• Networking and telecommunications equipment
• Computing systems and servers
• Consumer electronics
• Industrial and medical equipment

ON Semiconductor's NCP3170ADR2G offers a blend of performance, efficiency, and reliability, making it a top choice for designers looking to optimize their power management solutions. Its advanced protections and user-friendly features ensure a seamless integration into a wide array of electronic systems, providing a dependable power source for critical components.
