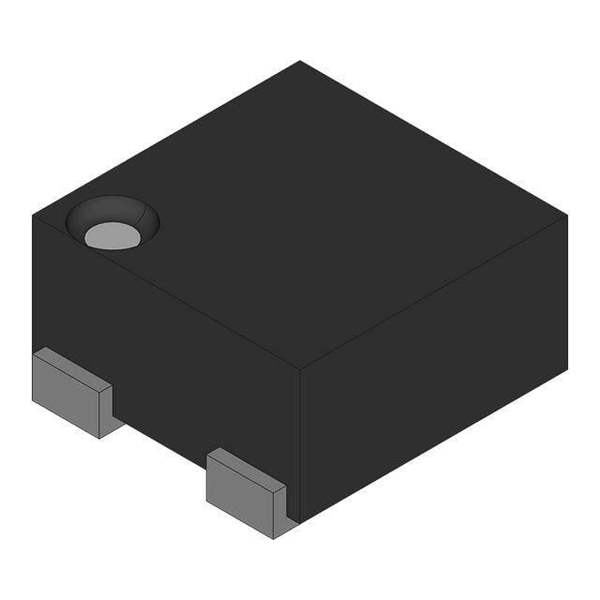

ON Semiconductor NCP4682DMU25TCG Voltage Regulator

The ON Semiconductor NCP4682DMU25TCG is a high-performance, fixed output, low dropout (LDO) voltage regulator designed to deliver a continuous 2.5V with up to 150mA of load current. This regulator is an ideal choice for battery-powered applications due to its low power consumption and small footprint.

Key Features:

• Output Voltage: Provides a stable 2.5V output, which is essential for consistent performance in sensitive electronic circuits.
• High Accuracy: Maintains output voltage accuracy within ±2%, ensuring reliable operation for precision applications.
• Low Dropout: The low dropout voltage minimizes the difference between the input and output voltage, enhancing efficiency, especially in low-voltage operations.
• Current Limit: Features an internal current limit to protect the device and the load from damage due to excessive current.
• Thermal Shutdown: Integrated thermal shutdown mechanism prevents the regulator from overheating, thereby ensuring the longevity of both the regulator and the application it powers.
• Package: Comes in a compact micro8 package, making it suitable for space-constrained applications.

Applications:

The NCP4682DMU25TCG is versatile in its applications, ranging from portable devices to fixed power supplies. It is particularly well-suited for:

• Mobile Phones
• Portable Media Players
• Wireless LAN Cards
• GPS Devices
• Cameras and Digital Still Cameras
• Other battery-operated devices

Product Summary:

ON Semiconductor's NCP4682DMU25TCG is a reliable and efficient solution for applications requiring a fixed 2.5V output with low dropout and high accuracy. Its protection features and compact size make it an excellent choice for designers looking to enhance the safety and longevity of their products without sacrificing performance or space. Whether it's for consumer electronics or industrial applications, this LDO voltage regulator is designed to meet a wide range of power management needs.
