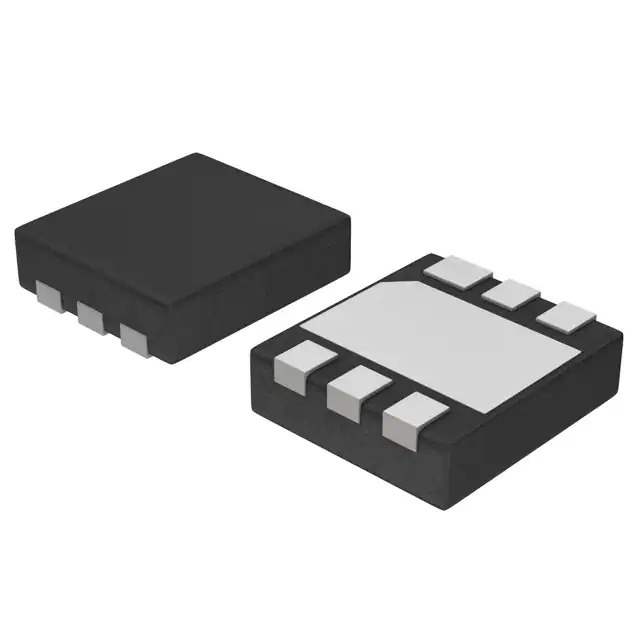

The NCP693HMN12TCG is a high-performance, low dropout linear voltage regulator offered by ON Semiconductor, a leading provider of semiconductor-based solutions. This component is specifically designed to deliver a fixed output voltage of 1.2V with an output current capacity of up to 300 mA. The device is housed in a compact DFN6 package, making it suitable for space-constrained applications.

Key Features

• Fixed Output Voltage: The regulator provides a stable 1.2V output, which is ideal for powering sensitive electronics that require a precise voltage supply.
• High Output Current: With the ability to deliver up to 300 mA, the NCP693HMN12TCG can support a wide range of applications, from microprocessors to peripheral devices.
• Low Dropout Performance: The low dropout voltage ensures efficient operation even when the input voltage is close to the output voltage, enhancing the battery life of portable devices.
• Thermal Shutdown Protection: The built-in thermal shutdown feature protects the device from overheating, ensuring reliable performance under various operating conditions.
• Current Limit Protection: The current limit functionality prevents damage to the regulator and the downstream circuitry in the event of an output short circuit or excessive load conditions.
• Ultra-Small Footprint: The DFN6 package is optimized for minimal space usage, making it an excellent choice for compact and portable electronic designs.

Applications

The NCP693HMN12TCG voltage regulator is versatile and can be used in a variety of applications. Its stable output and robust protection features make it particularly well-suited for:

• Portable and battery-powered devices
• Wireless communication systems
• Microprocessor and microcontroller power supplies
• Consumer electronics such as cameras and personal media players
• Point-of-load applications requiring a precise voltage source

Summary

In summary, the NCP693HMN12TCG from ON Semiconductor is a reliable and efficient solution for applications requiring a low dropout voltage regulator with a fixed 1.2V output. Its high current capability, compact size, and protective features make it an excellent choice for a wide range of electronic devices.
