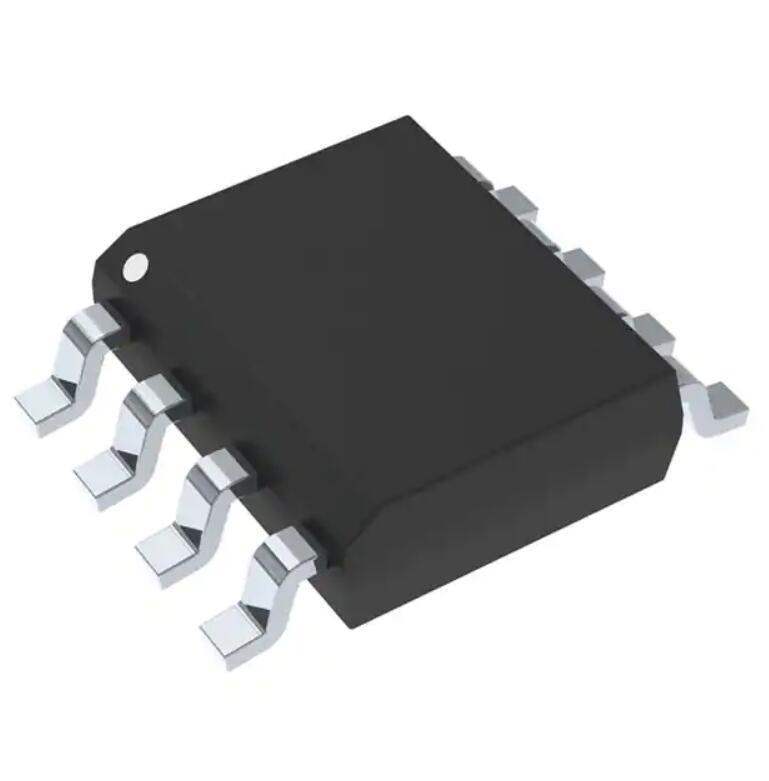

ON Semiconductor NCV4269CD150R2G Product Overview

The NCV4269CD150R2G is a robust, high-performance low dropout (LDO) regulator designed by ON Semiconductor, a leader in energy-efficient innovations. This device is specifically engineered to meet the rigorous demands of automotive applications, ensuring reliability and efficiency in a variety of systems.

Key Features

• Output Voltage Precision: The NCV4269CD150R2G provides a precise output voltage of 5.0V, with an impressive accuracy of ±2%, catering to applications that require a stable voltage supply.
• High Current Capability: It is capable of delivering a continuous output current of up to 150 mA, making it suitable for powering a wide range of automotive sensors and control circuits.
• Low Dropout Voltage: The regulator boasts a low dropout voltage, ensuring efficient operation even when the input-to-output voltage differential is minimal, thus preserving battery life in automotive environments.
• Thermal Protection: Equipped with thermal shutdown protection, the NCV4269CD150R2G is designed to prevent damage due to overheating, enhancing the durability of the device.
• Short Circuit Protection: The inclusion of short circuit protection safeguards the regulator and the connected components from potential damage caused by circuit malfunctions.

Applications

The NCV4269CD150R2G is ideal for a variety of automotive applications, including but not limited to:

• Automotive infotainment systems
• Instrument cluster modules
• Body control modules
• Advanced driver-assistance systems (ADAS)

Package and Quality

This LDO regulator comes in a compact DPAK-4 package, designed to offer a space-saving solution without compromising on performance. The device is AEC-Q100 qualified, signifying its compliance with automotive industry standards for reliability and performance under extreme conditions.

In summary, the NCV4269CD150R2G from ON Semiconductor is a high-quality, reliable LDO voltage regulator perfect for automotive applications requiring a steady 5V supply. Its high current capability, combined with protection features, ensures that it can deliver consistent performance, contributing to the safety and efficiency of automotive electronic systems.
