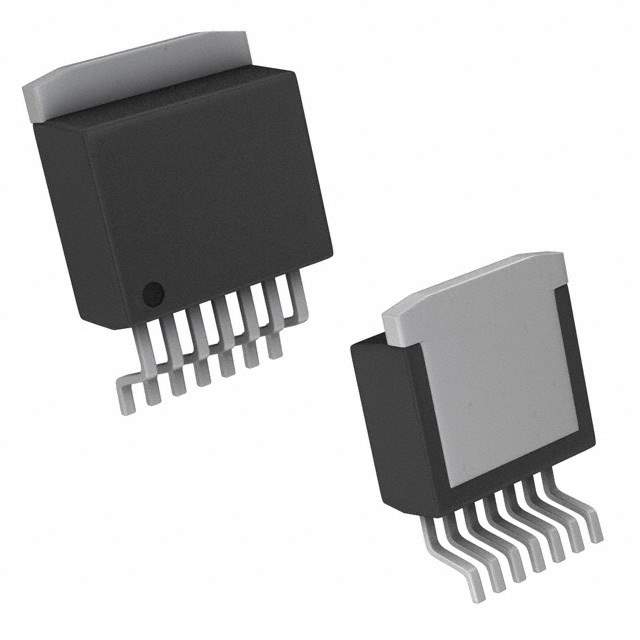

NCV8505D2T50R4G

Part No NCV8505D2T50R4G
Manufacturer ON Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.4A D2PAK
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 45V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.6V @ 400mA
Output Current 400mA
Operating Supply Current 350μA to 45mA
Control Features Enable, Reset
Protection Features Over Temperature, Reverse Polarity, Short Circuit
Temperature Range - Operating -40°C to 150°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 0.4V @ 400mA
Mounting SMD (SMT)
Case / Package D2PAK-7
Win Source Part Number 132516-NCV8505D2T50R4G
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NCV8505D2T50R4G CAD Model

Description

ON Semiconductor NCV8505D2T50R4G Voltage Regulator

The ON Semiconductor NCV8505D2T50R4G is a robust automotive-grade voltage regulator designed to deliver a stable and reliable power supply to a wide range of automotive and industrial applications. This high-performance component is specifically engineered to meet the rigorous demands of the automotive industry, providing a fixed output voltage of 5V with an impressive output current capability of up to 500 mA.

The NCV8505D2T50R4G is housed in a compact D2PAK-3 package, making it suitable for space-constrained environments while ensuring efficient heat dissipation. It is characterized by its low dropout voltage, which ensures optimal performance even in conditions where the input voltage is close to the output voltage, thereby maintaining a stable output for critical electronic systems.

Key features of the NCV8505D2T50R4G include thermal shutdown and current limit protection, which safeguard the device and the application against over-temperature and over-current conditions. Moreover, the device boasts a low quiescent current, which is particularly beneficial in reducing power consumption when the system is in standby mode, thereby extending battery life in battery-powered applications.

With an operating temperature range of -40°C to 125°C, the NCV8505D2T50R4G is capable of withstanding harsh environmental conditions, making it an ideal choice for automotive applications such as body control modules, instrument clusters, and infotainment systems, as well as industrial applications requiring a stable voltage supply.

Furthermore, the NCV8505D2T50R4G includes an enable function that allows the regulator to be switched on and off, providing additional power management flexibility. This feature is particularly useful for applications that require power sequencing or need to minimize power consumption during certain operational states.

In summary, the ON Semiconductor NCV8505D2T50R4G is a highly reliable and efficient voltage regulator that offers protection features, low quiescent current, and a wide operating temperature range, all within a compact package suitable for a variety of demanding automotive and industrial applications.
