ON Semiconductor NJL1302D - High-Performance Bipolar Transistor

The NJL1302D from ON Semiconductor is a high-voltage, high-current complementary bipolar transistor designed for audio power amplification and high-speed switching applications. This advanced and durable transistor is part of ON Semiconductor's renowned lineup of semiconductor products, known for their reliability and efficiency.

Key Features:

• High Collector-Emitter Breakdown Voltage: The NJL1302D boasts a collector-emitter breakdown voltage (VCEO) that ensures stable operation in high-voltage circuits, making it an ideal choice for audio amplifiers and power supplies.
• High Current Handling: With its ability to handle high currents, the NJL1302D is well-suited for applications requiring robust power handling capabilities.
• Complementary Pair: This transistor is designed to work in tandem with its complementary PNP counterpart, providing a balanced solution for push-pull configurations in amplifiers, which results in improved sound quality and efficiency.
• Low Saturation Voltage: The low saturation voltage of the NJL1302D minimizes power loss and heat generation, enhancing the overall efficiency of the device and making it suitable for high-power applications.
• High Transition Frequency: The high transition frequency (fT) of the NJL1302D allows for excellent performance in high-speed switching applications, ensuring minimal signal delay and high frequency response.

Applications:

• Audio Power Amplifiers
• High-Fidelity Sound Systems
• High-Speed Switching Circuits
• Power Supply Regulators
• Motor Control Systems

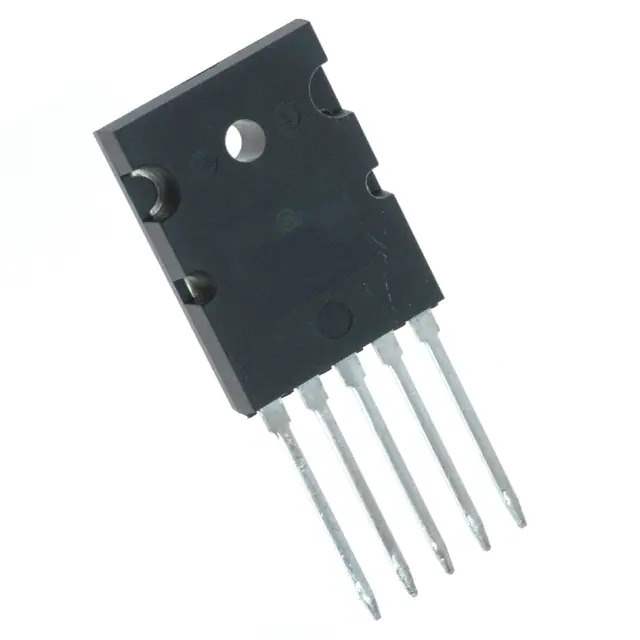

The NJL1302D is housed in a TO-3PL package, which provides a robust and reliable casing for the device, ensuring it can withstand the rigors of demanding applications. The package also facilitates efficient heat dissipation, a critical factor in maintaining performance and longevity in power electronics.

ON Semiconductor's commitment to quality means that the NJL1302D is manufactured to the highest standards, with rigorous testing to ensure consistent performance. Whether you're designing a high-end audio system or a power-hungry industrial application, the NJL1302D offers a solution that combines power, precision, and reliability.
