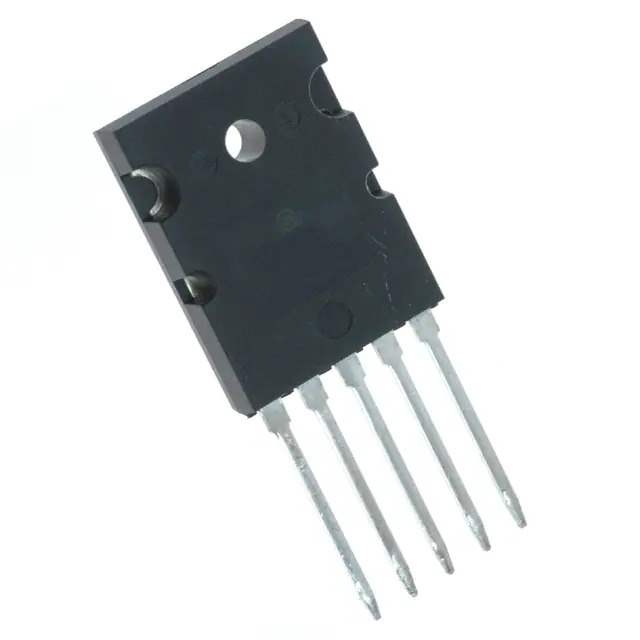

The NJL21194DG from ON Semiconductor is a state-of-the-art high-power NPN transistor designed to deliver superior performance in audio power amplification applications. This device is part of ON Semiconductor's acclaimed line of high-fidelity audio components, which are engineered to provide exceptional sound quality and reliability for both professional and consumer audio systems.

Key Features

• High Collector-Emitter Voltage: With a collector-emitter voltage (VCEO) of up to 250V, the NJL21194DG can handle significant power levels, making it ideal for high-voltage audio applications.
• High Current Capability: This transistor can support a continuous collector current (IC) of up to 16A, allowing it to drive large loads without performance degradation.
• Excellent Gain Linearity: The NJL21194DG offers superb gain linearity which results in low distortion, preserving the integrity of the audio signal throughout the amplification process.
• Complementary PNP Type Available: For applications requiring a complementary configuration, ON Semiconductor provides a matching PNP transistor, ensuring balanced performance in push-pull amplifier designs.

Applications

The NJL21194DG is perfectly suited for a wide range of audio applications, including:

• High-fidelity home audio systems
• Professional audio amplifiers
• Public address systems
• Theater and cinema sound systems
• Studio monitoring equipment

Technical Specifications

Package and Quality

The NJL21194DG is housed in a TO-3P package, which is known for its excellent thermal performance and durability. ON Semiconductor is committed to the highest standards of quality, and this transistor is no exception, ensuring long-term reliability and performance for all your audio amplification needs.
